How to identify user phase in low voltage digital distribution grid?
In a low-voltage digital distribution grid, identifying the user phase typically involves a few steps. Here's a general overview of the process:
Obtain the necessary equipment: You will need a phase indicator or a digital multimeter capable of measuring voltage and current.
Turn off power to the specific user: To ensure safety during the identification process, it's important to disconnect the power supply to the user phase you want to identify. This can be done at the distribution panel or by temporarily removing the user's fuse or circuit breaker.
Locate the user's service entrance: Identify the main electrical panel or distribution board that supplies power to the user. This panel is typically located near the point of entry of the electrical service into the user's premises.
Verify the absence of voltage: Use a non-contact voltage tester or a voltmeter to confirm that there is no voltage present at the user's panel. This step is crucial for ensuring safety before proceeding further.
Identify the phase wires: The phase wires in a low-voltage digital distribution grid usually consist of three different colors (e.g., red, yellow, and blue) or have some form of labeling. Consult the electrical plans, diagrams, or color-coding standards specific to your region or electrical system to determine the expected color code.
Measure voltage: Once you have identified the phase wires, turn on the power supply to the user. Using a digital multimeter or a voltmeter, measure the voltage between each phase wire and the neutral wire (which is typically colored black). The phase wire with the highest voltage reading corresponds to the user phase.
Confirm the identification: To be certain about the user phase, you can cross-check the measured voltage with the electrical load connected to that phase. Turn off the power again and measure the voltage at the selected phase wire. If the voltage drops to zero or near zero, it confirms that you have identified the correct user phase.
Remember, electrical work should be performed by qualified professionals with appropriate knowledge and expertise. If you are unsure or unfamiliar with electrical systems, it's recommended to consult an electrician or a knowledgeable individual for assistance. Safety precautions should always be when working with electrical circuits.

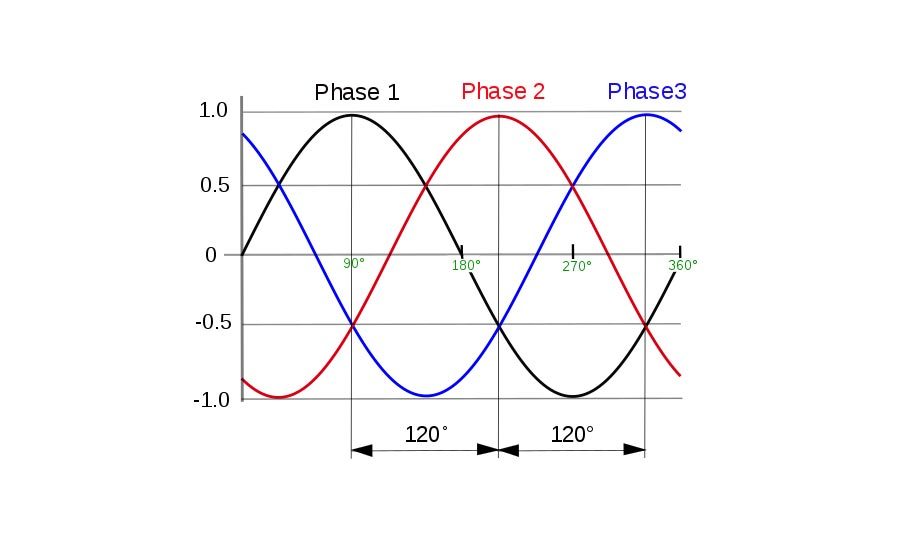

How to manage the 3 phase unbalance in low voltage digital distribution grid?
Managing 3-phase unbalance in a low voltage digital distribution grid involves several steps and considerations. Here are some strategies and techniques you can employ:
Load balancing: Distribute the loads evenly across the three phases. This can be achieved by monitoring the individual load profiles and reconfiguring the distribution of loads as needed. Implement load management techniques such as load shedding, load shifting, and load balancing algorithms to optimize the distribution of loads.
Fault detection and correction: Deploy advanced metering infrastructure (AMI) or smart meters with monitoring capabilities to detect and identify phase unbalance. Real-time monitoring can help identify faulty equipment, identify unbalanced loads, and enable timely corrective actions.
Voltage regulation: Maintain proper voltage levels within the acceptable limits. Use automatic voltage regulators (AVRs) or tap changers to adjust the voltage levels across the phases. Monitoring and controlling the voltage levels can help mitigate phase unbalance.
Reactive power compensation: Install power factor correction devices such as capacitors and reactors to balance reactive power demand on each phase. This helps stabilize the system and reduce the phase imbalance.
Active power management: Utilize advanced energy management systems that monitor and control the active power flow across phases. These systems can optimize power distribution, reduce power losses, and minimize phase unbalance.
Phase swapping: If the unbalance persists, physically swap the phases at the distribution level to achieve a more balanced load. This may involve reconfiguring cables, transformers, and other equipment.
Network reconfiguration: Consider reconfiguring the network topology to balance the loads across the phases. This could involve adding or relocating distribution transformers, adjusting cable lengths, or modifying the grid layout to achieve better phase balance.
Sensitization and education: Educate consumers and stakeholders about the importance of load balancing and phase awareness. Encourage them to distribute their loads evenly and avoid concentrated loads on a single phase.
Data analytics and system optimization: Utilize data analytics and machine learning algorithms to analyze historical data, detect trends, and predict future load patterns. Predictive analytics can be used to anticipate potential phase unbalance and proactively take corrective actions.
Grid automation and control: Implement advanced grid automation and control systems that enable real-time monitoring and control of the distribution grid. These systems can automatically detect phase unbalance, trigger alarms, and initiate corrective measures.
Managing 3-phase unbalance in a low voltage digital distribution grid is an ongoing process that requires continuous monitoring, analysis, and optimization. Collaboration among utilities, consumers, and technology providers is vital to achieving a balanced and efficient grid operation.

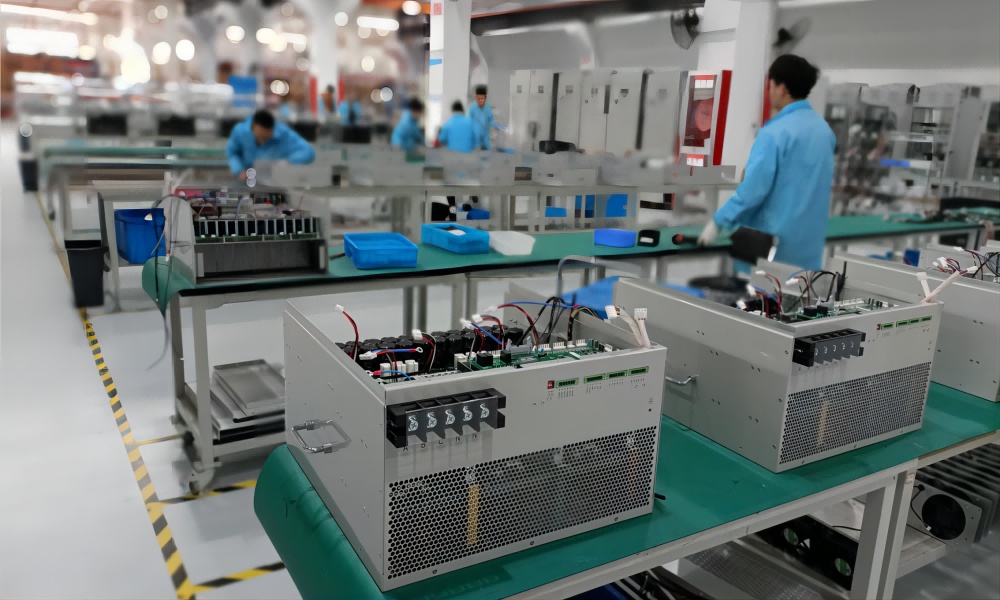

YTPQC Active Power Filter APF, Static Var Generator SVG or Advanced Static Var Generator ASVG can manage(compensate) the 3 phase unblance very well.
YTPQC-APF Active Power Filter or Active Harmonic Filter(AHF) is the comprehensive power quality control equipment. Our APF modules support 15A 25A,50A,75A,100A,125A,150A capacities(400V) with rack modules or wall mounted modules.
YTPQC-SVG or ASVG support 10kVAr 15kVAr,30kVAr,50kVAr,75kVAr and 100kVAr capacities(400V) with rack modules and wall mounted modules.
