What is a Variable Speed Drive (VSD/VFD)?
A Variable Speed Drive (VSD), also commonly called a Variable Frequency Drive (VFD) or Adjustable Speed Drive (ASD), is an electronic device that controls the speed and torque of an AC electric motor by varying the motor's input frequency and voltage.
How Do They Cause Harmonics?
The internal design of a VFD is the root cause:
Input Rectifier: The front end of a standard VFD is a diode bridge rectifier. This component converts the incoming AC sinusoidal voltage into a DC voltage.
Non-Linear Load: The rectifier only draws current from the power supply at the peaks of the voltage waveform, rather than drawing a smooth, continuous sinusoidal current. This short, pulsed current draw is highly distorted.
Harmonic Currents: This distorted current waveform can be broken down mathematically into a fundamental frequency (e.g., 60 Hz) and a series of higher-frequency currents that are multiples of the fundamental (e.g., 180 Hz (3rd), 300 Hz (5th), 420 Hz (7th), etc.). These are harmonics.
Why are Harmonics a Problem?
Harmonic currents flow back through the electrical distribution system, causing numerous issues:
Overheating Transformers, Cables, and Neutral Wires: Harmonics cause increased RMS current and "skin effect," leading to overheating and potential fire risks.
Nuisance Tripping of Circuit Breakers: Distorted waveforms can cause breakers to trip even when the actual RMS current is within limits.
Voltage Distortion: Harmonic currents cause harmonic voltage distortion, which can affect other sensitive equipment connected to the same point of common coupling (PCC).
Generator Issues: Can cause interference and overheating in backup generators.
Capacitor Bank Failure: Harmonics can resonate with power factor correction capacitors, leading to overload and failure.
Data Corruption and Equipment Malfunction: Sensitive electronics like PLCs, sensors, and computers can malfunction due to noisy power.
An Active Harmonic Filter is a sophisticated power electronics device that is connected in parallel to the non-linear loads (like VFDs) to mitigate harmonics.
How Does an Active Harmonic Filter Work?
It operates on the principle of "destructive interference":
Real-Time Monitoring: Advanced sensors continuously measure the load current waveform.
Instantaneous Analysis: A high-speed digital signal processor (DSP) analyzes the waveform and calculates the harmonic components present.
Injection of Counter-Currents: The AHF instantly generates and injects harmonic currents that are equal in magnitude but opposite in phase (180° out of phase) to the measured harmonics.
Cancellation: These "counter-harmonics" cancel out the original harmonic currents from the VFDs, resulting in a clean, sinusoidal current waveform flowing back to the power source.
Key Advantages of Active Harmonic Filters:
Dynamic Performance: They compensate for harmonics in real-time, making them perfect for systems where loads are constantly changing (e.g., VFDs speeding up and slowing down).
Multi-Harmonic Filtering: They can mitigate a wide range of harmonics (typically up to the 50th order or higher) simultaneously.
Power Factor Correction: Most modern AHFs can also provide leading or reactive power (kVAR) to correct poor power factor, another common side effect of VFDs.
Flexibility and Scalability: They can be sized for individual large loads or for an entire electrical panel serving multiple VFDs.
No Risk of Resonance: Unlike passive filters, AHFs do not interact with the system impedance and cannot cause dangerous resonance conditions.

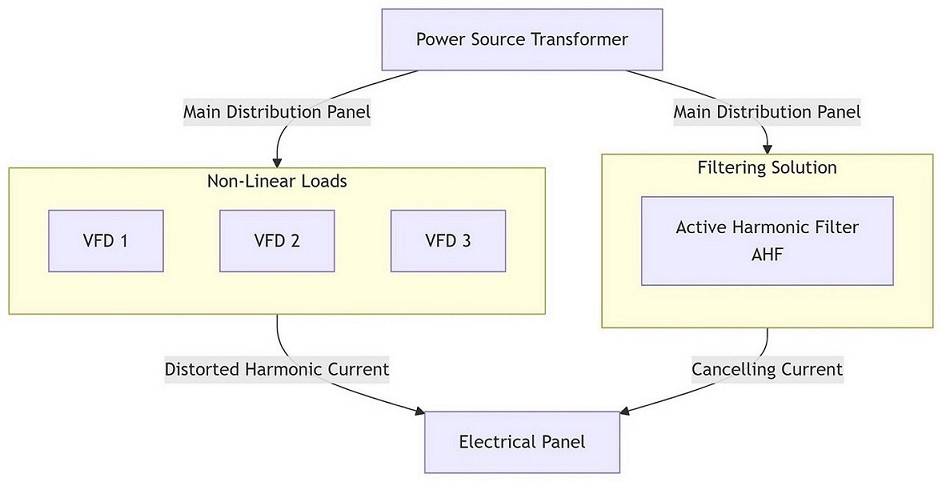

The following diagram illustrates how an Active Harmonic Filter is installed in relation to VFDs and the power source:
An Active Harmonic Filter is highly recommended when:
You have a large number of VFDs on a single system.
The VFDs are a significant portion of the transformer's capacity (e.g., >25%).
You are experiencing power quality issues (overheating, tripping breakers).
Your utility has strict limits on harmonic distortion (IEEE 519 is a common standard).
You have other sensitive equipment on the same power supply.
In summary, while Variable Speed Drives are excellent for energy savings and process control, they are a major source of harmonic pollution. Active Harmonic Filters are the modern, dynamic, and effective solution to eliminate these harmonics, protect your electrical infrastructure, and ensure compliance with power quality standards.
