Discover how YT Electric’s advanced AHF and SVG systems eliminate harmonic interference, improve power factor to 0.99, and protect your industrial assets from invisible electrical threats.

1. The Global Power Quality Crisis: A $150 Billion Problem

In the era of Industry 4.0, high-tech manufacturing, data centers, and automated production lines demand unprecedented electrical stability. However, the reality is far from ideal. According to industry research, Europe alone loses 150 billion Euros annually due to power quality issues—including voltage sags, short outages, and harmonic interference.

For industrial facility managers, these are not just numbers on a report; they translate into equipment overheating, unexpected production downtime, and shortened asset lifespans. As power quality specialists, YT Electric is dedicated to "Making Every Watt Count" by deploying advanced Active Harmonic Filters (AHF) and Static Var Generators (SVG) to secure global power grids.

2. The Invisible Killers: Harmonics and Reactive Power

Why does modern equipment fail even when the power is "on"? The culprits are often invisible to the naked eye but devastating to the electrical infrastructure:

· • Harmonic Pollution (THDi): Driven by non-linear loads such as Variable Frequency Drives (VFDs), rectifiers, and switching power supplies, harmonics distort the standard sine wave. This leads to transformer humming, motor vibration, and the dangerous overheating of neutral lines in 3-phase 4-wire systems.

· • Poor Power Factor (PF): Inductive loads like motors and transformers consume significant reactive power. A low power factor not only results in heavy penalty fees from utility companies but also reduces the effective capacity of your transformers, leading to underutilized assets.

3. Active Harmonic Filter (AHF): The Precision Harmonic Mitigation Solution

The YTPQC-AHF is our primary defense against harmonic distortion. Unlike traditional passive filters that are prone to resonance, our AHF uses a 3-level topology and high-speed IGBT switching technology.

· • How it Works: The system monitors the load current in real-time, identifies the harmonic components via the ADALINE adaptive algorithm, and injects an equal and opposite compensation current.

· • Performance Metrics: With a switching frequency of 25.6kHz and a full response time of less than 5ms, YT Electric AHF can eliminate harmonics from the 2nd up to the 50th order with a filtration efficiency of up to 98%. This ensures compliance with stringent standards like IEEE 519.

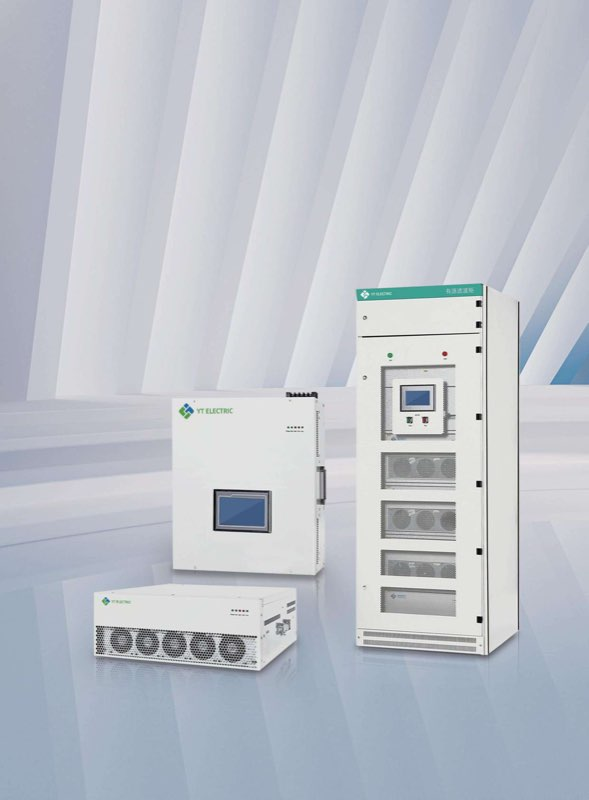

Figure 1: YT Electric AHF and SVG Modular Power Quality Solutions

4. Static Var Generator (SVG): Dynamic Reactive Power Balancing

For reactive power compensation, the YTPQC-SVG represents the gold standard. Traditional capacitor banks (TSC/MSC) are slow and can cause over-voltage issues. In contrast, the SVG uses Voltage Source Inverter (VSI) technology to provide step-less, dynamic compensation.

· • Bi-directional Compensation: It can dynamically adjust reactive power from -1.0 to 1.0 (capacitive to inductive) instantly.

· • Ultra-Fast Tracking: For rapidly changing loads like welding machines, elevators, or arc furnaces, the SVG’s 10ms response time ensures the power factor remains optimized at every millisecond, preventing voltage flicker and dips.

5. Technical Comparison: AHF vs. SVG Architecture

6. The Silicon Carbide (SiC) Revolution: YT Electric’s Cutting Edge

In our pursuit of extreme efficiency, YT Electric has introduced the SiC Active Harmonic Filter (Ultra Series). Utilizing Silicon Carbide MOSFETs, this new generation offers:

· • Lower Switching Losses: Achieving a system efficiency of up to 98.5%.

· • Higher Power Density: Smaller footprint, making it ideal for space-constrained data centers.

· • Enhanced Reliability: Superior thermal performance even in high-ambient temperature environments.

7. Industrial Durability: 45°C High-Temperature Performance

What sets YT Electric apart in the competitive global market is our commitment to engineering excellence under extreme conditions. Most power electronics devices derate their capacity as temperature rises. However, YT Electric’s hardware is designed to maintain 100% rated output at 45°C.

· • Intelligent Air Cooling: Features speed-controlled PWM fans to optimize airflow and minimize noise (<60dB).

· • Environmental Adaptation: With IP20 to IP54 protection options and anti-corrosive (Three-proof) coating on all PCBAs, our modules thrive in dusty, humid, or corrosive industrial sites.

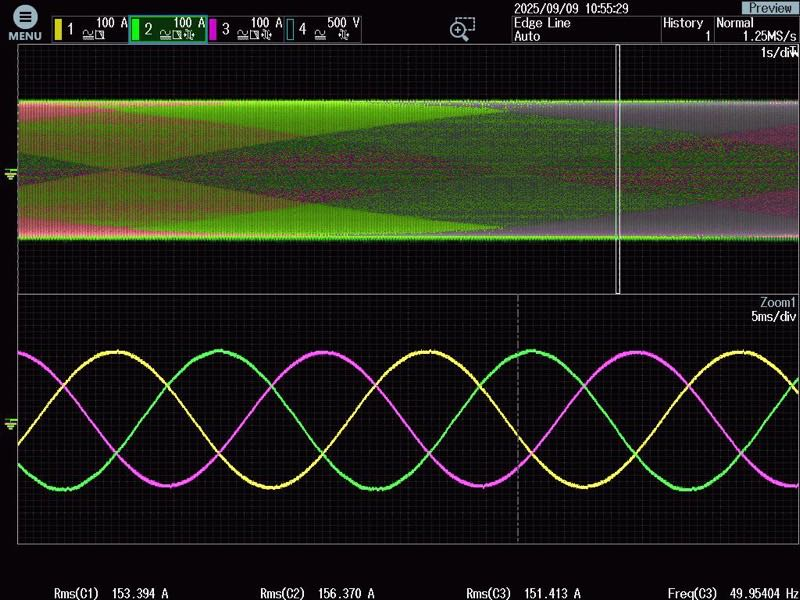

Figure 2: Power Quality Waveform Comparison - YT Pure Sine Wave Output

8. Total Quality Management (TQM) and Global Compliance

Our production process follows a strict TQM framework, including:

· • 24-Hour High-Temperature Aging: Every module undergoes rigorous stress testing before shipment.

· • Automatic Test Equipment (ATE): Ensuring zero-defect manufacturing and full traceability.

· • Certifications: Fully compliant with CE, ISO9001:2015, and international electrical standards.

Conclusion: Investing in Future-Proof Power

Investing in power quality is not an expense; it is a strategic move for long-term operational resilience. Whether through our cutting-edge SiC Active Harmonic Filters or our robust STATCOM systems, YT Electric ensures your industrial future is stable, efficient, and clean.

"Making Every Watt Count" is more than a slogan—it is the engineering philosophy that protects your assets and boosts your bottom line.
