Taming VFD Harmonics in Automated Sorting Systems
In the era of e-commerce, logistics centers have become the beating heart of global trade. Speed and reliability are the only metrics that matter.
To handle thousands of parcels per hour, these facilities use automated sorting systems, long conveyor belts, and fast elevators. Thousands of Variable Frequency Drives (VFDs) power this equipment. While VFDs enable the agility required for modern logistics, they also inject significant harmonic distortion into the warehouse electrical system.
The "Silent Killer" of Logistics Automation Harmonic distortion in a logistics hub is often a "silent killer." It doesn’t always cause immediate failure, but it degrades power system reliability over time.
Because logistics centers often use many small VFDs across miles of conveyor lines, their nonlinear loads add. This can cause major power quality issues at the point of common coupling (PCC) of the main transformer. It may require solutions to reduce harmonics.
The Nuisance Tripping Nightmare
One of the most frustrating issues for maintenance managers is "nuisance tripping." This happens when circuit breakers or residual current devices (RCDs) trip for no apparent reason. Often, the culprit isindividual harmonic current, which contributes to the overall harmonic content.
These unwanted frequencies, often characterized by specific harmonic orders, create peaks in the current waveform. They confuse protective relays and can trigger sudden shutdowns. Entire sorting lines may stop during peak hours.
AHF: The Smart Solution for Smart Warehousing

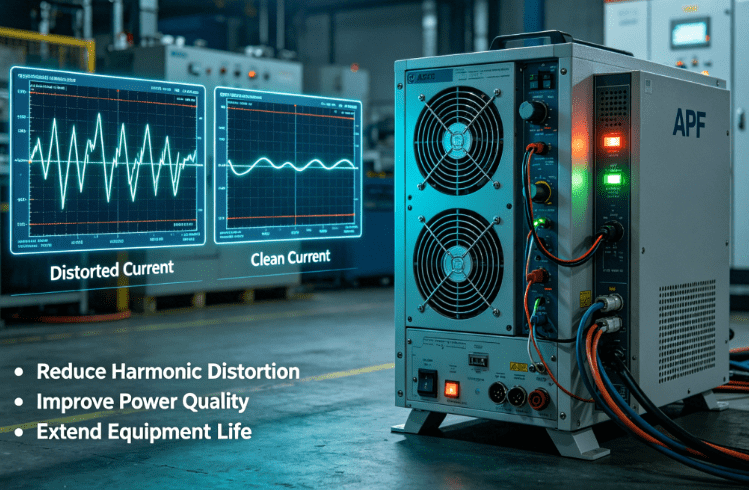

Active Harmonic Filters (AHF) are a type of active filter.
They respond fast to rapidly changing nonlinear loads in logistics centers. As sorting lines start and stop each day, the AHF adjusts compensation in real time to keep the power system stable.
• Eliminating Nuisance Tripping: By smoothing the current waveform, AHFs reduce harmonics and cut electrical noise. This helps prevent false alarms and breaker trips.
• Optimizing Energy Usage: Automated warehouses are massive energy consumers. AHFs improve power factor through correction. They help the facility draw only the power it needs from the utility. They also manage reactive power.
• Reducing Maintenance Costs: Lower harmonic content means less heat in transformers and cables. This cuts fire risk and reduces how often parts need replacement.
• Scalability for Future Growth: As you add more automated lanes and AGVs, the electrical system needs to be robust. AHFs provide the "power headroom" needed for facility expansion, ensuring continued power quality.
Case Study: The 24/7 Logistics Hub
A regional distribution center struggled with occasional PLC system failures. The PLC systems controlled the parcel sorting sequence. The issue was traced back to highactive harmonic levels from the hundreds of conveyor motors. After we installed a centralized harmonic filter, the PLC errors stopped. The facility reached a record 99.9% uptime during the holiday peak season.
Conclusion: Fueling the Future of Fulfillment
Automation, data, and efficiency will define the future of logistics. But we can realize this future only on a stable electrical system foundation. Active Harmonic Filter technology is the key to ensuring that your VFDs work for you, not against you. By taming harmonic distortion, you can ensure that the pulse of your logistics center remains strong, steady, and uninterrupted.
