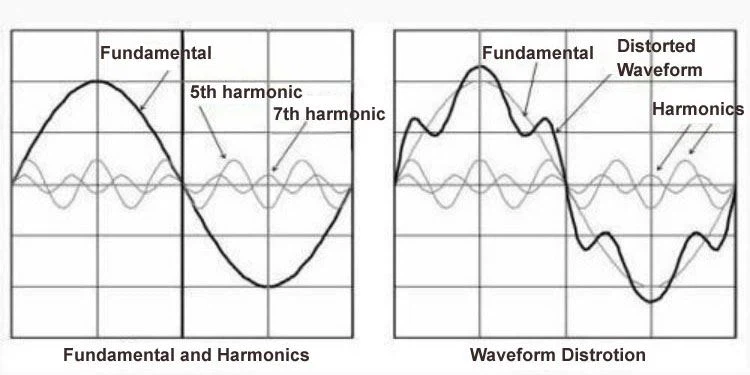

Active Harmonic Filters for UPS Systems : A Deep Dive into Electrical Harmonics Active Harmonic Filter For UPS System In the vast landscape of electrical devices, some exhibit nonlinear operating characteristics. This means that even if the voltage applied is sinusoidal, the current they draw isn’t. Such devices, when integrated into power distribution circuits, produce nonlinear curr...
Abstract: Utility power system harmonic problems can often be solved using a comprehensive approach including site surveys, harmonic measurements, and computer simulations. This case study presents the results for a commercial facility harmonic evaluation. The simulations were completed using the PSCAD program. The analysis evaluates the effects of transformer connections to determine the har...
Harmonics & VFDs: Causes, Solutions, and Key Insights How VFDs Cause Harmonic Issues Variable Frequency Drives (VFDs) are commonly used to control motor speed and optimize energy consumption in industrial systems. However, VFDs work as nonlinear loads. This means they draw currents that are not smooth, even if the supply voltage is a perfect sine wave. This happens because VFDs change AC power...

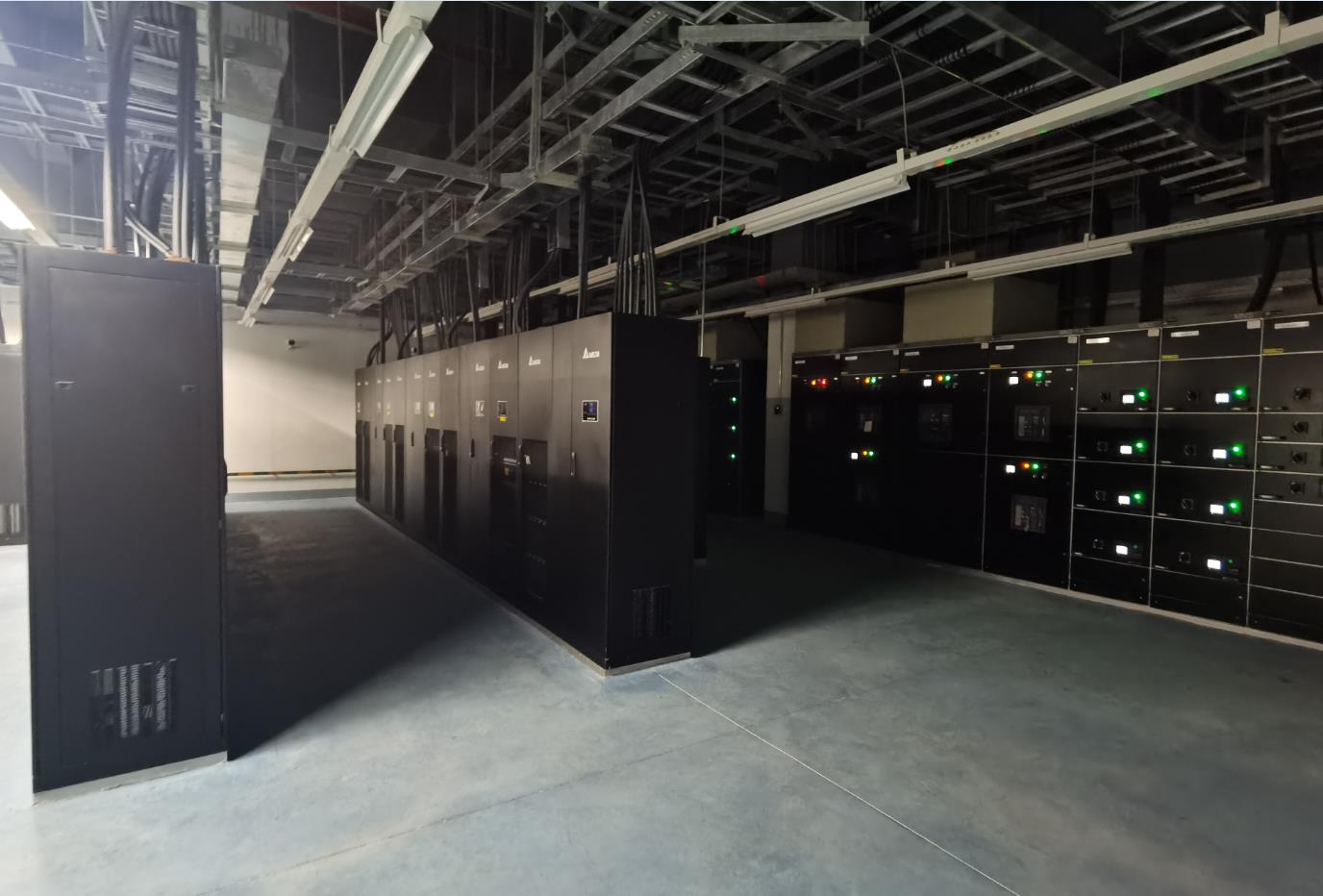

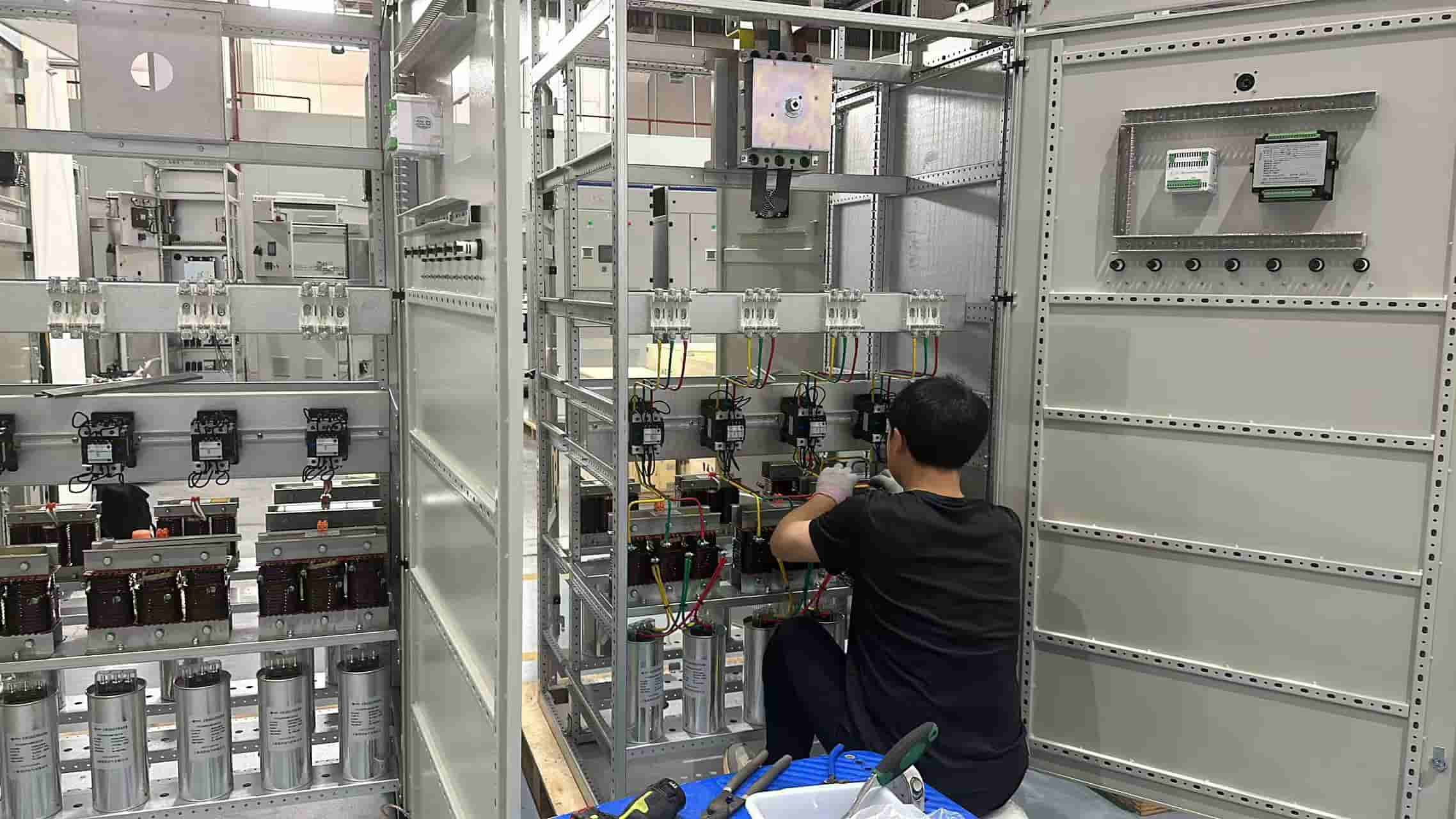

Enhance UPS Power Quality with YT ELECTRIC's Advanced AHF Solutions In an era where industrial automation, data centers, and renewable energy systems demand flawless power reliability, SHANGHAI YT ELECTRIC delivers cutting-edge solutions to optimize UPS performance, eliminate harmonic distortions, and extend equipment longevity. Our Active Harmonic Filter (AHF) technolog...
Why is CT Selection the Core of AHF System Performance? The current transformer (CT), as the "sensing organ" of the active harmonic filter (AHF), directly affects the accuracy of harmonic detection and the dynamic response speed. If the CT is not properly selected, the following problems may occur: Failure of Harmonic Compensation: Low-frequency or high-frequency harmonics are missed in det...
IEEE 519 Harmonic Distortion Limits: Guide to Compliance The IEEE 519-2022 standard, called Harmonic Control in Electric Power Systems, sets rules for designing electrical systems to reduce harmonic distortion. What Does the Standard Do? IEEE 519-2022 helps engineers manage harmonics in power systems. It covers both linear loads (like motors and regular light bulbs) and nonlinear loads...
As the world accelerates its transition toward low-carbon and sustainable energy systems, the integration of renewable energy—such as solar, wind, and hydropower—has become a central pillar of national energy strategies. However, this rapid shift has introduced new challenges to the stability and reliability of power systems. One of the most critical concerns is power quality&md...
1. Current Transformer (CT) A Current Transformer is an instrument transformer used to measure alternating current (AC) by stepping down high currents to a lower, measurable value. Key Functions: Current Measurement: Steps down high primary current (e.g., 1000A) to a standardized secondary current (e.g., 5A or 1A) for meters and relays. Isolation: Provides galvanic isolation be...
