How to Select the Best Current Transformer for AHF

Why is CT Selection the Core of AHF System Performance?

The current transformer (CT), as the "sensing organ" of the active harmonic filter (AHF), directly affects the accuracy of harmonic detection and the dynamic response speed. If the CT is not properly selected, the following problems may occur:

• Failure of Harmonic Compensation: Low-frequency or high-frequency harmonics are missed in detection, typically leaving behind 3rd and 5th harmonics.
• Risk of System Overload: CT saturation leads to measurement errors, causing the AHF to over-compensate or under-compensate.
• Compliance Challenges: It fails to meet the requirement of IEEE519-2022 that the total harmonic distortion (THD) should be less than 5%.

Industry data shows that 35% of AHF failures globally are due to incorrect CT selection (Source: International Power Quality Association, 2024). By optimizing the CT configuration, the efficiency of harmonic management can be increased by up to 40%.

Four Selection Criteria for AHF-Dedicated CTs

1. Precision Grade and Linear Range

• Recommended Grade: Grade 0.2 or higher to ensure that the linear error is less than ±1% within the range of 20%-120% of the rated current.
• Special Requirements: For high-frequency harmonic sources such as arc furnaces and frequency converters (above the 50th harmonic), a broadband CT (with a bandwidth covering 0.1Hz-3kHz) should be selected.

2. Installation Method and Topology Adaptability

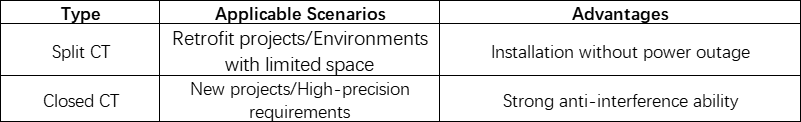

• Common Types:

• Topology Matching: For multi-AHF parallel systems with a common busbar, a differential CT layout is recommended to eliminate the influence of circulating current.

3. Environmental Tolerance

• Industrial Scenarios: Select CTs with an IP65 protection rating to withstand oil, dust, and extreme temperatures ranging from -40°C to 85°C.
• EMC Compatibility: It needs to pass the verification of the IEC61000-4-8 standard to avoid signal distortion caused by electromagnetic interference.

4. Standardization of Signal Output Interfaces

• Output Type: Give priority to 4-20mA or Modbus RTU interfaces, which are compatible with mainstream AHF controllers (such as Schneider and ABB).
• Impedance Matching: The secondary-side load impedance of the CT needs to match the input impedance of the AHF (typical value: ≤0.1Ω).

Practical Cases: How Does CT Selection Affect System Efficiency?

Case 1: Harmonic Management of the Cooling System in a Data Center (A Leading Internet Company in China)

• Problem: The variable frequency drive (VFD) cooling pumps generate high-frequency harmonics above the 25th harmonic, and the insufficient bandwidth of the original CT leads to a delay in the response of the AHF.
• Solution: Replace it with a broadband CT (0.1Hz-5kHz) + Rogowski coil for auxiliary detection.
• Result: The THD is reduced from 8.7% to 2.3%, and the annual electricity cost savings exceed 120,000 US dollars.

Case 2: Harmonic Suppression of the LED Lighting System (A Landmark Building in Shanghai)

• Challenge: The lighting dimming system generates intermittent 3rd harmonics, and the insufficient linearity of the CT causes false triggering.
• Optimization Plan: Adopt a 0.1-grade precision CT + dynamic calibration algorithm.
• Achievement: The neutral line current is reduced by 63%, and the equipment lifespan is extended by 30%.

Common Misunderstandings and Pitfall Avoidance Guide

• Misunderstanding: Only focusing on the rated current of the CT and ignoring the characteristics of the harmonic spectrum.
• Correction: Use a handheld harmonic analyzer (such as Fluke 435-II) to measure the load spectrum in real-time and customize the CT frequency response curve.
• Misunderstanding: Ignoring the influence of the CT installation position on the phase error.
• Best Practice: The CT should be installed on the incoming line side of the AHF, within 5 meters from the filter, and avoid interference from parallel cables.
• Misunderstanding: Not considering the long-term stability of the CT.
• Suggestion: Select a CT with a nanocrystalline alloy core material, with an annual drift rate of less than 0.05%.

Future Trends: Smart CTs and AI-Driven Harmonic Prediction

With the popularization of digital twin technology, the next generation of CTs will integrate the following functions:

• Embedded Sensors: Monitor temperature and humidity in real-time and automatically calibrate.
• Edge Computing Capability: Predict the trend of harmonic changes through a local AI model and dynamically adjust the parameters of the AHF.
• Blockchain Traceability: Record the full life cycle data of the CT to meet the ISO 50001 energy management audit requirements.
