The IEEE 519-2022 standard, called Harmonic Control in Electric Power Systems, sets rules for designing electrical systems to reduce harmonic distortion.

What Does the Standard Do?

IEEE 519-2022 helps engineers manage harmonics in power systems. It covers both linear loads (like motors and regular light bulbs) and nonlinear loads (like computers or LED lights). The standard does three main things:

1. It explains how voltage and current waveforms work in power systems.
2. It sets limits for acceptable distortion in these waveforms.
3. It gives guidance on how power sources and equipment should interact.

Key Terms to Know

• Linear Loads: Devices that do NOT create harmonics. Examples include traditional light bulbs, motors, and transformers.
• Nonlinear Loads: Devices that DO create harmonics. Examples are computers, printers, and energy-efficient lighting.
• Point of Common Coupling (PCC): The spot where your equipment connects to the power grid, such as a meter or transformer.

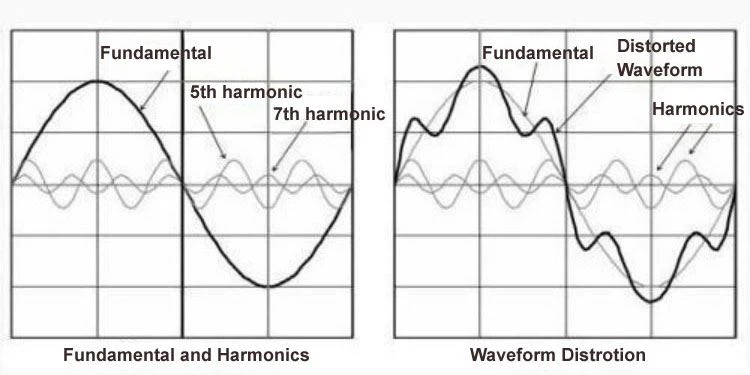

• Harmonics: Extra currents or voltages that vibrate at multiples of the system’s base frequency. For example, in a 60 Hz system, the 3rd harmonic is 180 Hz.
•

Why Harmonics Are a Problem

Harmonics cause two main issues:

1. Overheating: They make wires, transformers, and motors hotter than normal, which can damage them.
2. Unwanted Currents: These can trip circuit breakers, disrupt phone lines, or cause machines like variable-speed drives to malfunction.

What Are the Voltage Distortion Limits For?

The standard’s voltage distortion limits protect both power systems and user equipment. To meet these limits:

• Users must ensure their equipment doesn’t produce too many harmonic currents. For example, adding new devices shouldn’t make voltage distortion worse.
• Power Companies must manage the grid’s electrical properties to keep voltage distortion low when needed.

Key Updates in IEEE 519-2022

The 2022 version improves earlier standards (like IEEE 519-2014) by:

• Adding better methods to measure harmonics.
• Explaining how to analyze data statistically.
• Giving clearer rules for systems with mixed linear and nonlinear loads.

How to Use the Standard

Start by reading the official IEEE 519-2022 document. Focus on:

• Definitions of terms like PCC and harmonics.
• Tables listing maximum allowed distortion levels.
• Guidelines for designing systems with both old (linear) and modern (nonlinear) equipment.

Controlling Harmonics in Power Systems

YT Electric offers effective solutions to meet IEEE 519-2022 standards. Here's how our products help:

1. Active Harmonic Filters (AHF Series)

Our AHF series actively cancels harmonics in real time. Key benefits:

• Reduces THD to below 5% (meets strict IEEE 519 limits)
• Works for both single-phase and three-phase systems
• Compact design saves installation space

2. Hybrid Solutions

SVG connected in parallel upstream of capacitors.

Control strategy:

• SVG dominant dynamic control: Responds to reactive fluctuations within ±100ms
• Capacitor baseline compensation: Handles 60-70% fundamental reactive demand

Implementation Case Study:

A textile factory reduced harmonics from 25% to 3% using our:

• 200A AHF unit for sewing machine VFDs
• 300A PHF bank for lighting circuits
• Total payback period: 14 months through energy savings

Why Choose YT Electric?

• 15 years of harmonic control experience
• All products come with IEEE 519 standard
• 24/7 technical support
• Factory Direct- customized solutions and spare parts
• Free project consultation and solution

YT Electric is the biggest OEM manufacturer of low-voltage AHF and SVG with more than 15 years' experience. All products hold certifications for ISO9001, CE, and CQC standards, and type test reports support them.
