YTPQC-AHF Active Harmonics Filter(Active Dynamic Filter)

Benefits of installing YTPQC Active Harmonic Filter

• Prevention of breakdown and equipment failure
• Maximum utilization of installation capacity
• Improvement of energy efficiency
• Securement of reliability and continuity
• Reduction of service and maintenance costs
• Prevention/reduction of unnecessary energy losses
• Increased safety by reducing fire risk

YTPQC-AHF Active Harmonic Filter

YTPQC-AHF Active Harmonic Filters provide a fast return on investment. The quick and effective response of a YTPQC-AHF Active Filter to power system variations enables higher process reliability, longer equipment life, reduced energy costs, and dependable productivity. YTPQC-AHF dramatically improves power quality by mitigating harmonics, stabilizing voltage, balancing phase loads, and compensating for poor power factor. It’s a core building block of our smart grid product solutions. YTPQC-AHF makes it easy to comply with power quality standards and demanding grid codes.

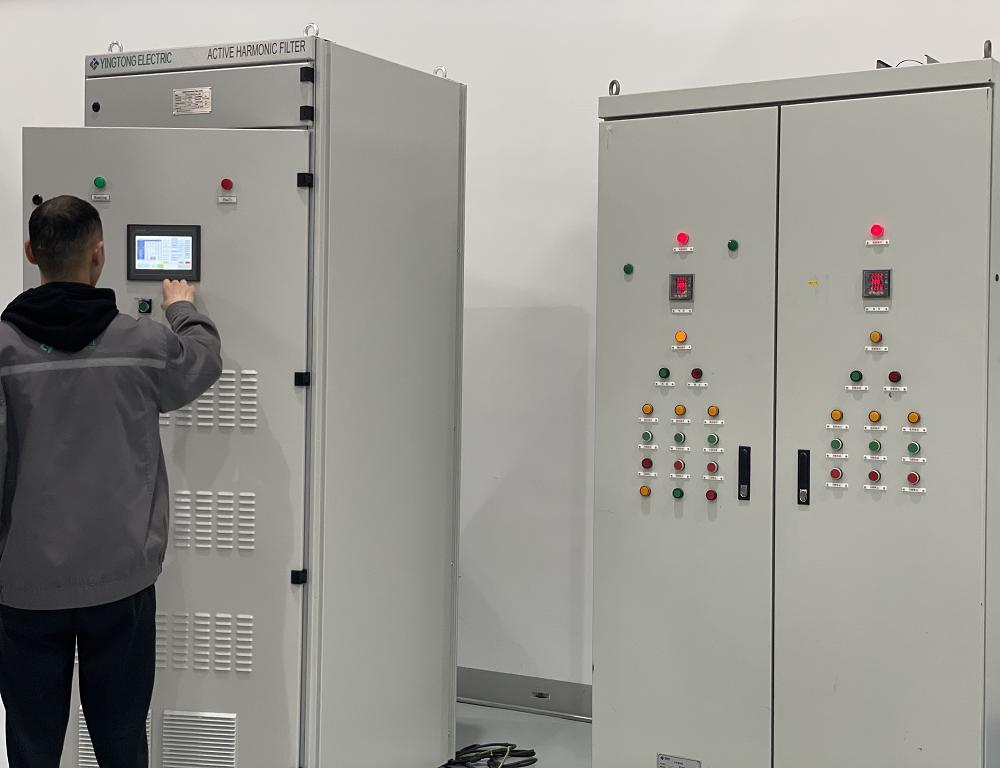

YTPQC-AHF Harmonics Correction Unit comes equipped with a smart controller for automatic harmonic correction. It features 3-level IGBT Inverter topology, a 7” touch-screen user interface, and dedicated cooling chimney that protects electronics keeping them cool. Designed for small areas, YTPQC-AHF can grow to 750A inside one cabinet. The result is a flexible, controlled, and compact, harmonic filter that is safe, easy to operate, and compliant with standard communication protocols, and meets IEEE 519-2014 harmonic requirements.

Two typical characteristics

• Fast response time
  Our harmonic filters have a very fast response time, so that harmonic pollution and malfunctions are almost immediately detected and eliminated before they cause any damage or problems.
• Adjustable and dynamic
  The type of pollution the filter set to focus on can be chosen by setting parameters correctly. It is also possible to set the degree to which this pollution must be eliminated. The Active Harmonic Filter is dynamic and continuously adjusts to changing circumstances. Parameters of the Active Harmonic Filter can also be adjusted at a later time. This makes the filter future-proof and effective throughout its lifetime.

Reduction of the harmonic currents and pollution considerably lowers the chance of malfunctions and problems occurring. An additional advantage is the fact that an Active Harmonic Filter reduces the absorption of reactive power and equipment wear and tear. This results in further cost savings.

Typical Applications

YT Electric is your go-to Active Power Filter perfect for use in sensitive industrial and commercial environments, as well as in infrastructure applications where non-linear loads are present including:

• Motors with variable frequency and variable speed drives in medium and large industrial processes
• High pressure pumps with variable frequency drives (VFDs), uninterrupted power supply (UPS), ozone generators, UV lights in water treatment plants
• HVAC and lighting systems in data centers and commercial buildings
• Variable speed generators in wind power generation to prevent electrical resonance
• Magnetic Resonance Imaging (MRI) in medical facilities and hospitals
• Sensitive electronics in commercial buildings affected by harmonic currents in neutral lines caused by single-phase, non-linear loads

More Applications
