Power Quality Problems
There are a large number of power electronic components in medical equipment. The more common equipment are MRI (nuclear magnetic resonance apparatus), CT machine, X-ray machine, DSA (cardiovascular imaging machine) and so on. Among them, MRI will generate radio frequency pulses and alternating magnetic fields to generate nuclear magnetic resonance, and radio frequency pulses and alternating magnetic fields will bring harmonic pollution; the rectifier bridge of high-voltage rectifiers in X-ray machines will generate heavy harmonics when working. In addition, the X-ray machine is an instantaneous load, and the voltage can reach several tens of kilovolts during operation. The primary side of the transformer will increase the instantaneous load of 60~70kw, and will also increase the harmonics of the power grid.
Hazards and Influence
From the above description, we can find that there are many harmonic sources in the power distribution system of the hospital, which will generate a large number of harmonics, seriously pollute the power grid, and cause power quality problems such as excessive harmonics and neutral line harmonic overload. These problems can affect the use of medical equipment.
YTPQC Power Quality Solutions
Medical centers are generally dominated by the 3rd, 5th, and 7th harmonics, and also contain a small amount of higher harmonics. Since medical centers have high requirements for power quality, the best solution for the current harmonic situation in medical institutions is to use YTPQC- AHF Active Harmonic Filtering technology. The YTPQC-AHF device adopts advanced power electronic technology to detect the harmonics in the power grid in real time, and generates an inverse compensation current through the converter to dynamically filter out the harmonics in the power grid.
Project List Examples

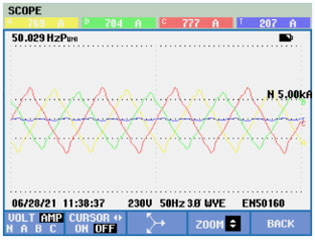

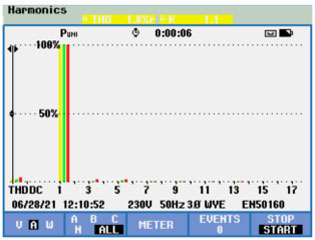

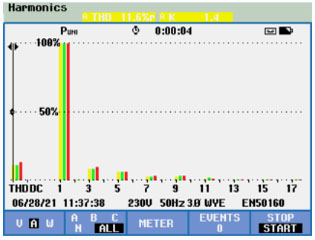

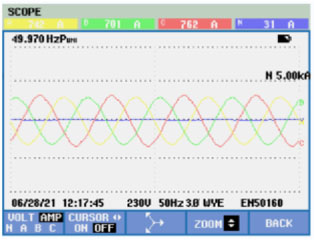

There are certain harmonic problems on site in Building 3 of Shanghai Tongren Hospital. In order to avoid the impact of harmonics on the normal operation of the hospital, a 200A Active Harmonic Filter cabinet was installed on site to control the harmonics. After treatment, the on-site harmonic problem has been well improved, and the Total Harmonics Current Distortion rate(THDi) has been reduced from about 12% to about 2%.
More Applications
