Mitigating Harmonics in Frequency Converters with AHF

Frequency converters (VFDs) are indispensable components in modern industrial systems. These devices control the speed and torque of electric motors, enabling greater flexibility and efficiency in operations. However, the use of frequency converters often results in harmonic distortions, which can significantly impact the performance and longevity of electrical systems.

What Are Harmonics in Frequency Converters?

Harmonics are electrical signals or waves that are integer multiples of the fundamental frequency in an AC power system. When frequency converters adjust motor speed or other electrical loads, they create non-linear loads. These loads produce harmonics that are usually at a higher frequency than the main frequency.

Harmonic currents disrupt the normal flow of electrical energy. This causes several negative effects on the electrical system.

In an ideal scenario, the electrical waveform should be smooth and sinusoidal. However, the introduction of harmonics causes the waveform to distort, affecting the quality of the power. These distortions often lead to several undesirable consequences, including overheating, equipment malfunctions, and energy inefficiencies.

The Negative Impacts of Harmonics in Electrical Systems

The presence of harmonics in a system powered by frequency converters can cause several operational challenges. The following are some of the key negative effects of harmonics:

• Equipment Overheating: Harmonic currents can increase the thermal stress on components such as transformers, motors, and capacitors. This overheating reduces the efficiency of the equipment and may lead to premature failure if left unchecked.

• Reduced Energy Efficiency: Harmonic distortions lead to additional energy losses in the system, lowering overall energy efficiency and increasing operational costs.

• Operational Downtime: Sensitive equipment, such as sensitive industrial control systems or machinery, may experience interruptions or malfunctions due to poor power quality. This could result in costly operational downtime and production delays.

• Shorter Equipment Lifespan: Long-term exposure to harmonics can reduce the lifespan of electrical equipment. This happens because of too much heat and stress.

• Higher Maintenance Costs: Harmonics can lead to more maintenance because they put extra strain on electrical parts. This adds to the cost of operation.

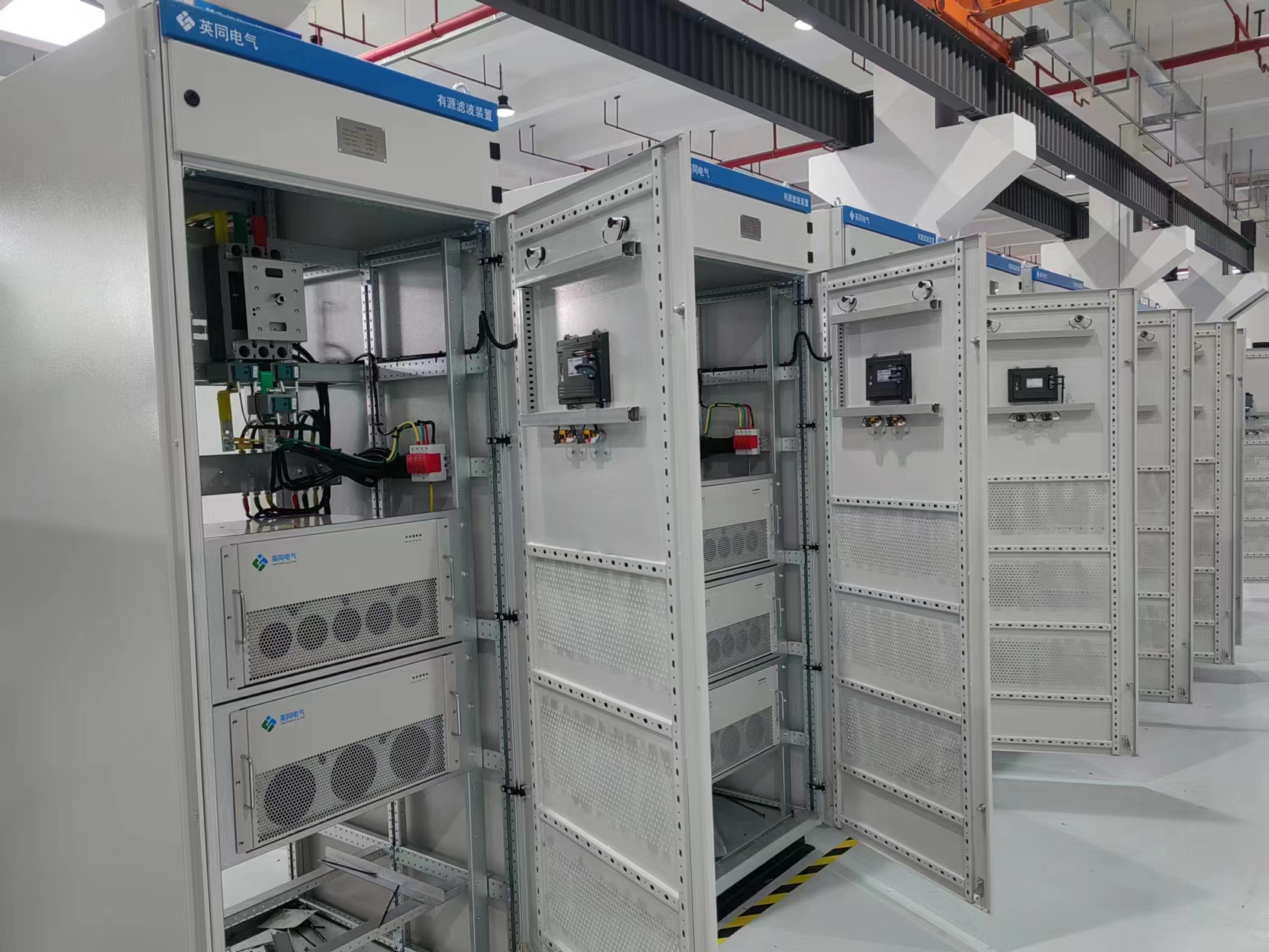

How Active Harmonic Filters Help Mitigate Harmonics

• Broad-Spectrum Harmonic Filtering: YT Electric’s AHFs can filter harmonics over a wide range of frequencies. They work from the 2nd to the 50th odd-order harmonics. This broad-spectrum filtering ensures that a wide variety of harmonic distortions are addressed, contributing to better power quality overall.

• Rapid Response Time: YT Electric’s AHFs boast an initial response time of less than 50 microseconds and full compensation within 5 milliseconds. This rapid response is crucial for maintaining the stability of the power system and minimizing disturbances.

• Real-Time Compensation: AHFs provide dynamic and continuous compensation, adjusting to the fluctuating loads and power quality issues in real-time, ensuring optimal performance at all times.

• Enhanced Equipment Protection and Longevity: By reducing the amount of harmonic distortion, AHFs protect sensitive equipment, such as transformers, motors, and drives, from overheating and other forms of electrical stress, significantly extending the life of the equipment and reducing maintenance costs.

• Minimal Energy Losses: YT Electric’s AHFs help to minimize energy losses caused by harmonics, leading to more efficient energy use and reduced operational costs.

Conclusion

YT Electric is the biggest OEM manufacturer of low-voltage AHF and SVG with more than 15 years' experience. All products hold certifications for ISO 9001/14001/45001, CE, and CQC standards, and type test reports support them.

For more information on how our SVGs can help manage harmonics and improve power quality: contact us at sales@ytelect.com.
