YTPQC Active Harmonic Filter in French

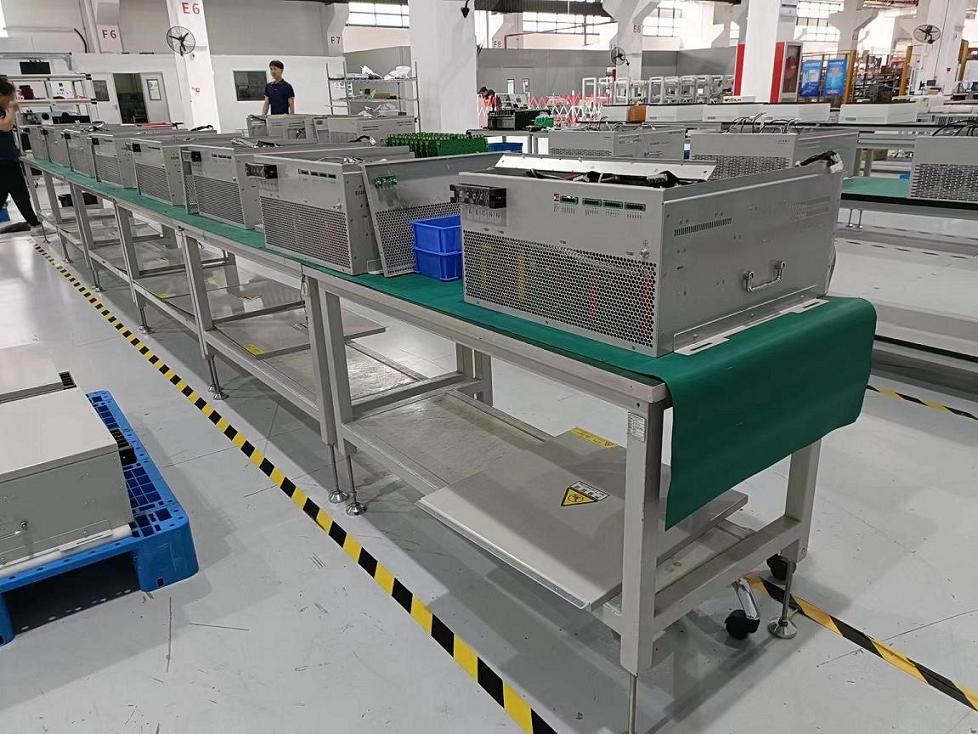

YTPQC-AHF Active Power Filter has been operating safely and stably in France

YTPQC-AHF Active Power Harmonic Filter is an advanced power quality control equipment, which can compensate reactive power ,harmonics current and imbalance by setting parameters from friendly Human Machine Interface.This time French client purchased our Active Harmonic Filters mainly to improve Power Factor and mitigate harmonics, to improve power quality accordingly.

How to size the capacity of Active Harmonic Filter

The capacity, or rating, of an active harmonic filter is typically calculated based on a few key factors:

1. Load current: The rating of the active harmonic filter should be sufficient to handle the maximum load current of the system.

2. Harmonic content: The filter should be designed to handle the specific harmonic frequencies present in the system. This can be determined through harmonic analysis of the system, or by using a power quality analyzer.

3. Voltage level: The filter should be rated for the voltage level of the system it is being installed in.

4. Required attenuation: The level of harmonic attenuation required will impact the size and rating of the active harmonic filter. Higher attenuation levels may require a larger filter.

5. Future expansion: If there are plans for future expansion of the system, the filter should be sized to accommodate that growth.

Overall, the sizing of an Active Harmonic Filter is a complex process that requires careful analysis of the system's characteristics. It is recommended to consult with our experienced electrical engineer or consultant to ensure that the Active Filter is properly sized for your specific application.
