Why AHF Is the Go-To Solution for Harmonic Problems in Modern Industries

From data centers in Frankfurt to EV charging stations in Southeast Asia, Active Harmonic Filters (AHFs) are rapidly becoming the gold standard for solving one of the most overlooked yet costly problems in industrial power systems—harmonics.

Modern electrical loads such as variable frequency drives, inverters, and switching power supplies generate non-linear current waveforms, resulting in harmonic distortion. Left unchecked, these distortions cause overheating in transformers, unexpected tripping of circuit breakers, reduced equipment life, and even production downtime.

This is where the Active Harmonic Filter steps in.

Real-Time Harmonic Mitigation with Precision

At the heart of YTPQC-AHF lies a powerful control system built with TI DSP and FPGA platforms.

The system analyzes load currents in real-time—every few microseconds—and injects counter-harmonic currents through a high-speed IGBT inverter. This dynamic response allows the AHF to eliminate up to 97% of harmonic currents (up to the 51st order), ensuring full compliance with IEEE-519 and other global standards.

No need to oversize transformers or rely on bulky passive filters—AHF brings agility and intelligence to your power network.

Compact, Scalable, and Built for Harsh Conditions

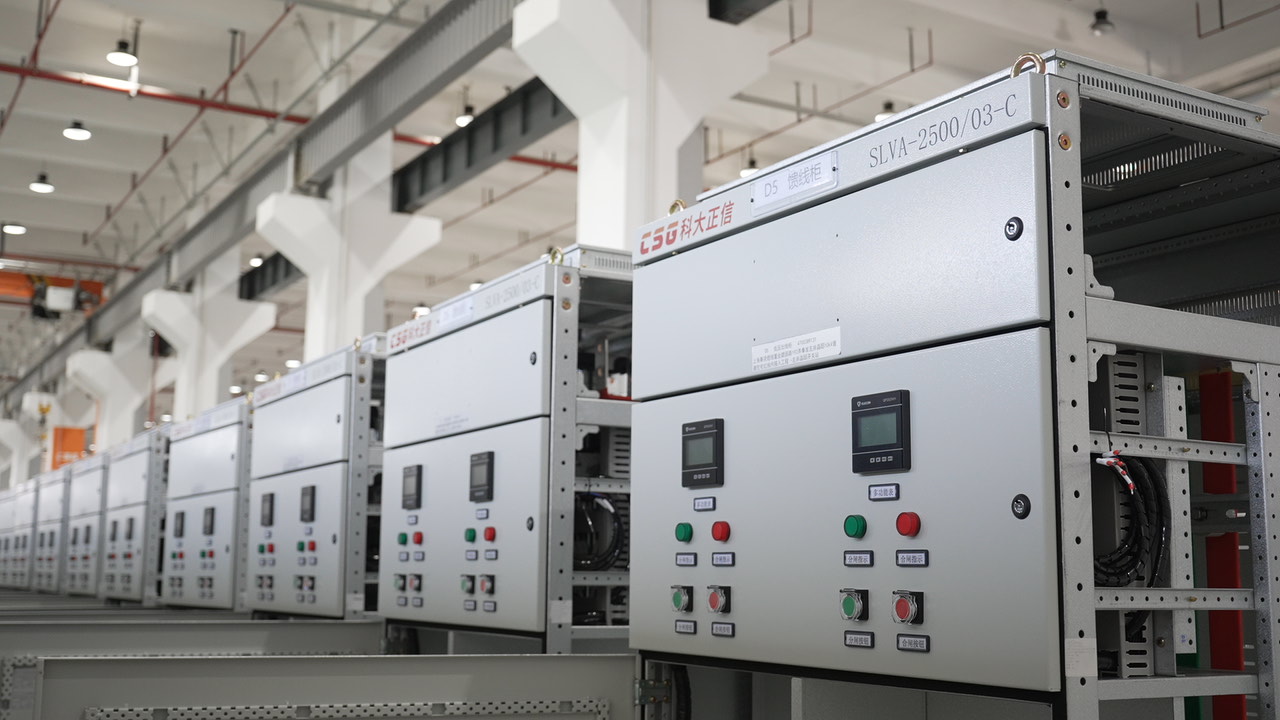

Designed with modularity in mind, each AHF unit (starting from 50A) can be easily paralleled to meet growing load demands. Whether installed in a wall-mounted enclosure or integrated into a low-voltage switchgear panel, the AHF is as flexible as your system requires.

Rated for temperatures from -10°C to +45°C and available in IP20/IP54 protection levels, the filter thrives in dusty workshops, humid processing plants, and high-altitude solar farms.

Global Success Stories

A steel manufacturer in Turkey integrated AHF units across their rolling mill lines, reducing total harmonic distortion (THDi) from 32% to under 5%—avoiding penalties from the utility provider and stabilizing sensitive measurement systems.

Meanwhile, a logistics automation hub in Singapore uses AHFs to maintain power quality across dozens of servo-driven conveyor belts. The result? Zero unplanned shutdowns in 18 months.

Rapid ROI and Simple Integration

Thanks to energy savings, improved equipment lifespan, and avoidance of power factor penalties, most YTPQC-AHF installations achieve ROI in less than 12 months. With plug-and-play design, RS485/Modbus communication, and intelligent LCD control panels, integration into existing power networks is fast and efficient.
