Variable Speed Drives (VSDs)
Do you have AC motors in your facility?Do these motors need a variable output?
The growing popularity of Variable Speed Drives (VSDs) is a key driver of energy efficiency, but Variable Speed Drives cause power quality problems, one of which is the harmonics within power systems. So networks requires more effective means to mitigate harmonics.
In China 60% of the total electrical energy generated is consumed by rotating equipment.70% of this total is consumed by centrifugal or flow related applications such as motors, fans, blowers, compressors, and pumps according to current estimates.Variable speed drive technology offers a cost-effective method to match driven speed to load demands and presents a state-of-the-art opportunity to reduce operating costs and improve overall productivity.

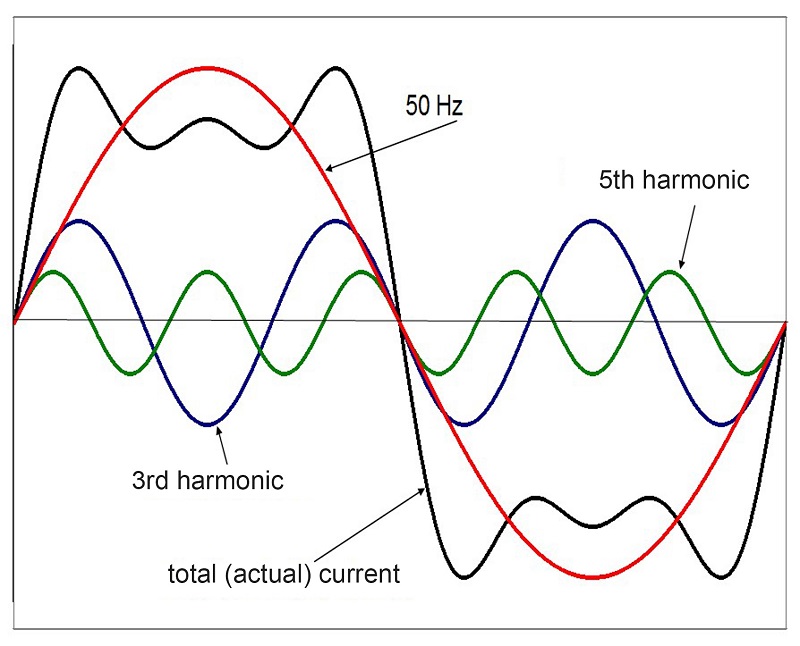

But the installation of increased numbers of non-linear load devices, such as variable speed drives, onto electrical networks that are at, or above capacity has seen a rapid increase in interest of the harmonic performance of these devices.
Ways to approach harmonics
There are three options when working with harmonics – reduction, cancellation or diversion.

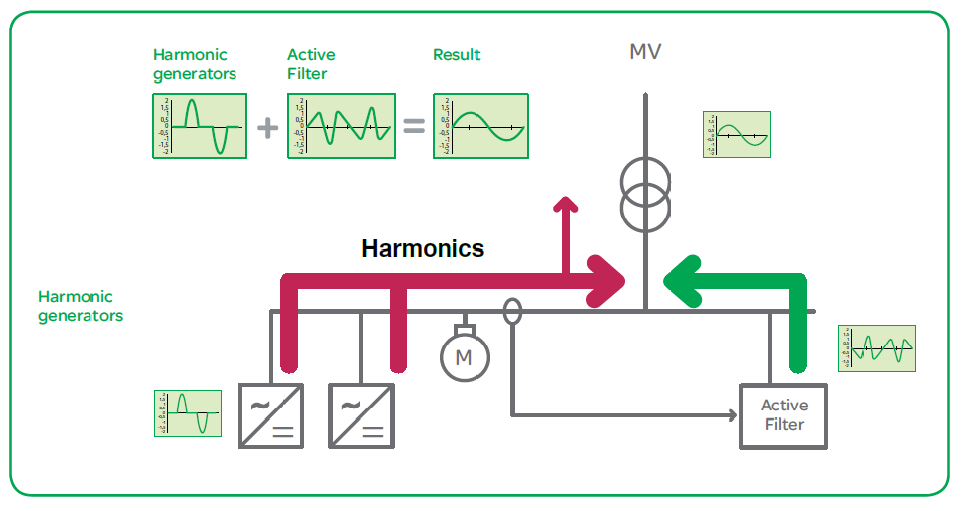

Active Harmonic Filters (AHF) compensate for harmonics generated by nonlinear loads by generating the same harmonic components in the opposite phase. External Active Harmonic Filters are most suitable for multiple small drives. Active Harmonic Filtering is relatively expensive compared to other methods of attenuating harmonics,but with best filtering effect.The Active Harmonic Filter is also known as Active Harmonic Conditioner.
YTPQC-AHF Active Harmonic Filter, best solution for harmonics from VSD
We are experts in providing active harmonic filters that are easy to install, require minimal maintenance, and offer optimal performance under even the harshest conditions.
YTPQC Active Harmonic Filter is 3 level IGBT based harmonics generator. YTPQC active harmonic filter is connected in parallel to the load to be compensated. The harmonics present in the networks is measured by the DSP&FPGA of AHF from external Current Transformer. The DSP&FGPA controls the IGBT unit of the active Harmonic filter. The DSP&FPGA commands to the IGBT control unit to generate the harmonics spectrum in just phase opposition to the measured harmonic spectrum in a real time basis to nullify the load harmonics. YTPQC Active Harmonic Filter provides very fast response to compensate the harmonic current.
YTPQC AHF active filter can generate harmonics order from 2 to 50th. The cost of YTPQC AHF Active Harmonic Filter is a little more than the passive filter but the complete eradication(5% at rated load) of the harmonics is possible using YTPQC active harmonic filter AHF.
YTPQC AHF Active Harmonic Filter Series
