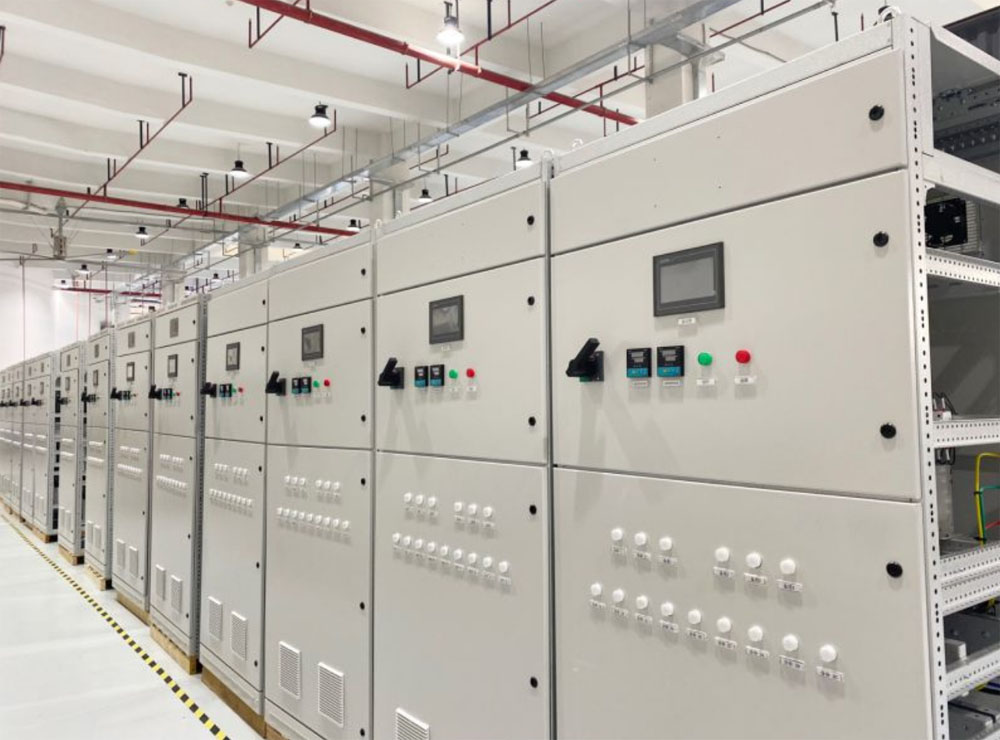

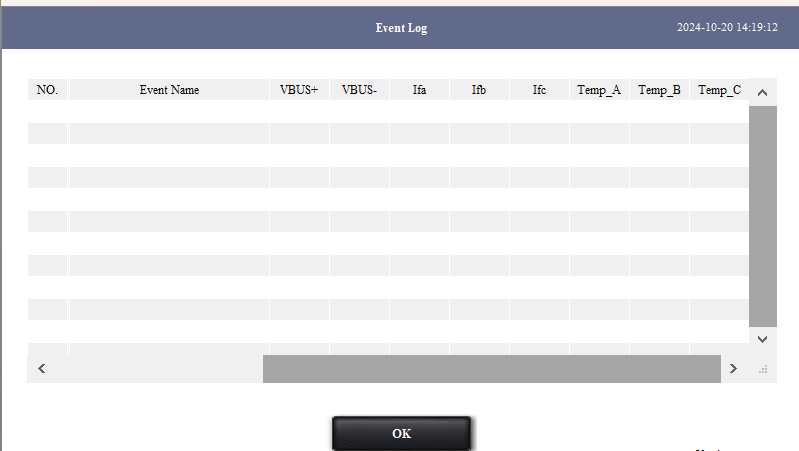

A Fault Record of an Active Harmonic Filter (AHF) typically documents any issues, malfunctions, or performance anomalies that occur during its operation. This record is essential for troubleshooting, maintenance, and ensuring the reliability of the system. Key elements in a fault record might include:

Key Elements of Fault Record

1. Date and Time:

   • When the fault occurred, including specific timestamps for accurate tracking.

2. Fault Type:

   • Description of the fault (e.g., overcurrent, voltage imbalance, communication failure, or hardware malfunction).

3. Operational Conditions:

   • Details about the system’s operating conditions at the time of the fault (e.g., load conditions, temperature, humidity).

4. Error Codes:

   • Any error codes or alerts generated by the AHF’s monitoring system, which can help identify the issue.

5. Duration of the Fault:

   • How long the fault persisted before it was resolved or acknowledged.

6. Impact Assessment:

   • Analysis of how the fault affected system performance, such as increased harmonic distortion or compromised power quality.

7. Response Actions:

   • Actions taken to address the fault, including reset procedures, maintenance performed, or component replacements.

8. Follow-Up Recommendations:

   • Suggestions for future preventive measures or modifications to enhance reliability and performance.

Common Faults in Active Harmonic Filters

1. Overcurrent:

   • Occurs when the AHF experiences currents exceeding its rated capacity, often due to unexpected load changes.

2. Thermal Overload:

   • Can happen if the cooling systems fail or if the Active Harmonic Filter operates continuously near its maximum ratings, leading to overheating.

3. Communication Failures:

   • Issues in the communication between the AHF and the control systems, which can impede monitoring and control.

4. Power Supply Issues:

   • Fluctuations or interruptions in the power supply can cause the AHF to malfunction or reset unexpectedly.

5. Component Failures:

   • Failures in internal components (such as capacitors, IGBTs, or filters) that can lead to reduced functionality or complete shutdown.

Importance of Maintaining a Fault Record

• Troubleshooting: Helps engineers quickly identify the root cause of issues and implement corrective actions.
• Performance Monitoring: Aids in assessing the overall performance of the AHF over time and identifying trends.
• Preventive Maintenance: Enables proactive measures to be taken before faults lead to significant downtime or equipment damage.
• Documentation: Provides a historical record that can be useful for audits, regulatory compliance, or quality assurance.

Maintaining a detailed fault record for an Active Harmonic Filter is crucial for ensuring its optimal performance and extending its lifespan while minimizing disruptions in power quality management.
