Data Center Power Quality: Why 3-Level AHF is the Ultimate Choice for Protecting Server Assets?

Introduction: The High Stakes of Data Center Continuity

In the hyperscale data center era, downtime is not just an inconvenience—it’s a catastrophic financial event. With the rise of AI computing and cloud storage, power density has reached unprecedented levels. However, the very equipment that powers these facilities—Uninterruptible Power Supplies (UPS) and high-density server racks—is also the primary source of harmonic pollution. For electrical engineers and facility managers, managing Total Harmonic Distortion (THDi) is no longer optional. It is the key to preventing premature hardware failure and ensuring global compliance.

1. The Invisible Threat: How Harmonics Bleed Data Center Profits

Harmonics are high-frequency electrical currents that circulate within a power system, distorting the fundamental 50/60Hz sine wave. In an IDC (Internet Data Center) environment, these issues manifest in several critical ways:

• Excessive Heat in Neutral Conductors: Data centers utilize single-phase server loads that generate high zero-sequence harmonics, leading to dangerous overheating of the neutral line.
• UPS System Instability: Harmonics can cause control errors in UPS units, leading to false alarms or even unexpected transfers to bypass mode during critical loads.
• Shortened Asset Lifespan: Server power supplies and air conditioning VFDs are sensitive to waveform distortion. Chronic exposure to THDi increases vibration and thermal stress, reducing equipment life by up to 30%.

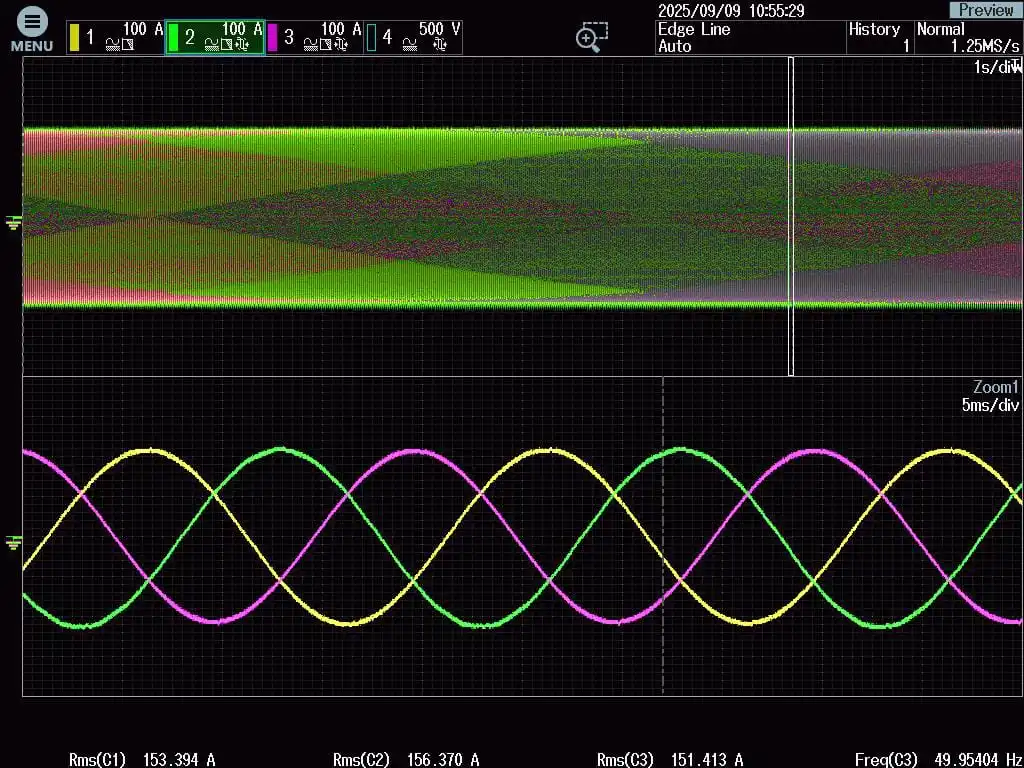

Figure 1: High-Precision Waveform Comparison - YT Pure Sine Wave Output vs. Conventional Distortion

2. Enter the 3-Level AHF: A Paradigm Shift in Power Correction

Traditional 2-level harmonic filters are becoming obsolete in modern industrial applications. YT Electric’s adoption of 3-level topology represents a technical breakthrough in harmonic mitigation.

3-Level vs. 2-Level: The Engineering Truth

Why does topology matter? In a 2-level converter, the IGBTs switch between two voltage steps. A 3-level converter adds a third voltage step, resulting in:

• Reduced Voltage Stress (dv/dt): The voltage stress on individual switching components is halved, significantly increasing the reliability of the IGBT modules.
• Lower Switching Losses: By reducing the voltage swing, the system achieves higher efficiency (up to 98.5%) compared to the 95-96% seen in older 2-level designs.

3. Key Performance Benchmarks of YT Electric YTPQC-AHF

The YTPQC-AHF is not just a filter; it is a precision instrument for electrical stability.

25.6kHz Switching Frequency: Achieving Near-Perfect Sine Waves

Switching frequency determines the accuracy of harmonic compensation. YT Electric’s AHF operates at 25.6kHz, allowing detection and neutralization of harmonics up to the 50th order with surgical precision, maintaining a THDi of less than 5% at rated loads.

45°C Full Load Performance: Resilience in High-Density Environments

YT Electric’s YTPQC series is designed with superior thermal management, capable of 100% rated output at 45°C ambient temperature. This eliminates the need to over-size your system to account for heat.

4. Technical Comparison: AHF vs. SVG Architecture

Conclusion: Future-Proofing Your IDC with YT Electric

Investing in a 3-level AHF is more than a technical upgrade—it’s an insurance policy for your data center’s future. By eliminating the root causes of electrical instability, YT Electric helps global operators reduce operational costs and extend equipment life.

Contact YT Electric today for a customized Power Quality Audit.
