Comparing Harmonic Mitigation Techniques: A Comprehensive Overview

Introduction

Harmonics in power systems have become a significant concern due to the widespread use of semiconductor-based loads, such as variable frequency drives (VFDs) and line-commutated DC drive systems. These harmonics can lead to various power quality issues, affecting both equipment performance and system reliability.

Harmonics are integer multiples of the fundamental frequency. For example, in a 50 Hz system, the 5th harmonic occurs at 250 Hz. In a three-phase rectifier supplying a constant DC current, the harmonic orders present on the AC side can be determined using the formula:

$h=p\times k\pm 1$

where:

• $h$ is the harmonic order,
• $p$ is the pulse number of the rectifier,
• $k$ is an integer (1, 2, 3, ...).

The amplitude of these harmonics depends on factors such as grid strength and the presence of series line impedance. Generally, a stronger grid results in higher current harmonics but lower voltage harmonics.

Harmonic Issues in Power Systems

Excessive harmonics can lead to several problems, including:

• Notching: Voltage waveform distortions due to commutation in power electronic devices.
• Motor Vibration: Caused by torque pulsations from harmonic currents.
• Bearing Currents: Induced by non-sinusoidal supply voltages, leading to premature bearing failure.
• Overheating: Additional losses in equipment due to harmonics.
• Nuisance Tripping: Unintended activation of protective devices.
• Generator Malfunction: Harmonics can interfere with generator operation.
• Production Stops: Downtime caused by equipment malfunction.
• Electrical Fires: Overheating can lead to insulation failure and fires.
• Component Failure: Reduced lifespan of electrical components.

Mitigating harmonics is essential not just for compliance with standards but also to prevent these potential issues.

Overview of Harmonic Mitigation Solutions

Harmonic mitigation techniques can be broadly classified based on two factors:

1. Active vs. Passive Solutions:

   • Active Solutions: Use power electronics to inject compensating currents.
   • Passive Solutions: Utilize passive components like inductors and capacitors.

2. Series vs. Shunt Configurations:

   • Series Solutions: Connected in line with the load.
   • Shunt Solutions: Connected in parallel with the load.

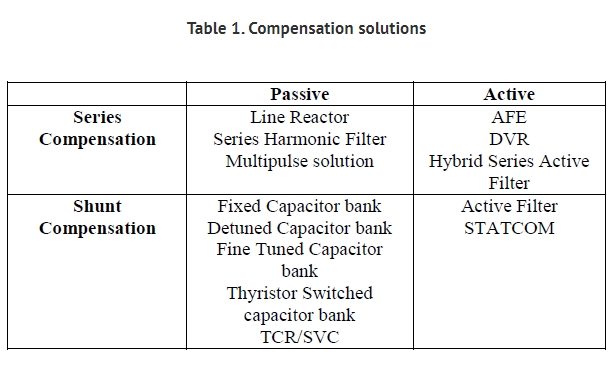

This classification yields four main categories:

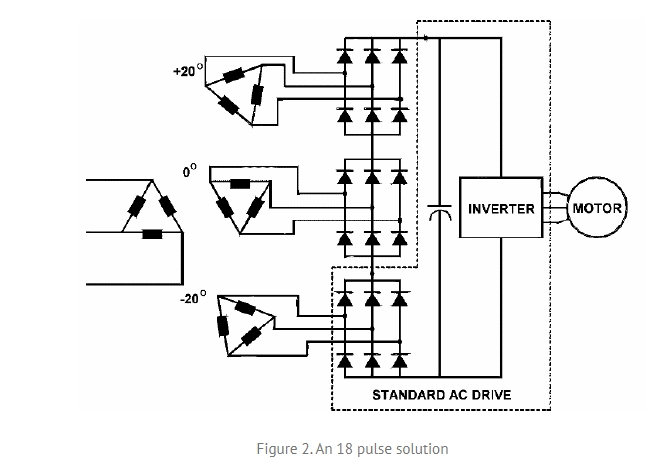

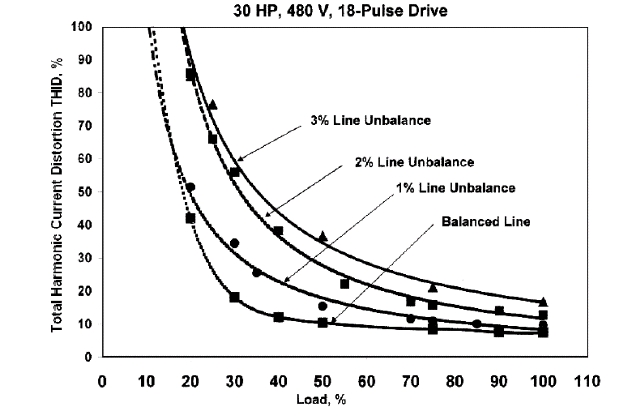

1. Passive Series Solutions: Line reactors, series harmonic filters, multi-pulse transformers.
2. Passive Shunt Solutions: Fixed capacitor banks, detuned filters, fine-tuned passive filters.
3. Active Series Solutions: Active front-end (AFE) drives.
4. Active Shunt Solutions: Active harmonic filters.

Active Series Solutions

Active Front-End (AFE) Drives

Description: Replace the standard diode rectifier in VFDs with an active rectifier using IGBTs, allowing for control over the input currents.

Advantages:

• Harmonic Reduction: Achieves low current distortion (typically around 5% THD).
• Regenerative Capability: Can feed energy back to the grid during braking.
• Power Factor Correction: Maintains excellent power factor.

Disadvantages:

• Cost and Complexity: More expensive and complex than standard drives.
• Switching Ripple: Introduces high-frequency noise on both line and load sides.
• Size and Efficiency: Larger and less efficient due to handling full load power.
• Retrofitting Difficulty: Not easily added to existing systems.

Active Shunt Solutions

Active Harmonic Filters

Description: Connected in parallel with the load, these filters inject compensating currents to cancel out harmonics. They use advanced power electronics and control algorithms to dynamically adjust to changing load conditions.

Advantages:

• Highly Effective: Can reduce harmonic distortion to meet stringent standards.
• Flexibility: Easily retrofitted and adjustable for different loads.
• Compact Size: Smaller than series devices since they handle only harmonic currents.
• Selective Compensation: Can target specific harmonics.
• Grid Insensitivity: Performance is less affected by grid conditions.
• Additional Functions: Can provide reactive power compensation and balance loads.

Disadvantages:

• Initial Cost: Higher upfront investment compared to some passive solutions.
• Switching Noise: Introduces some switching ripple, though less than series active solutions.

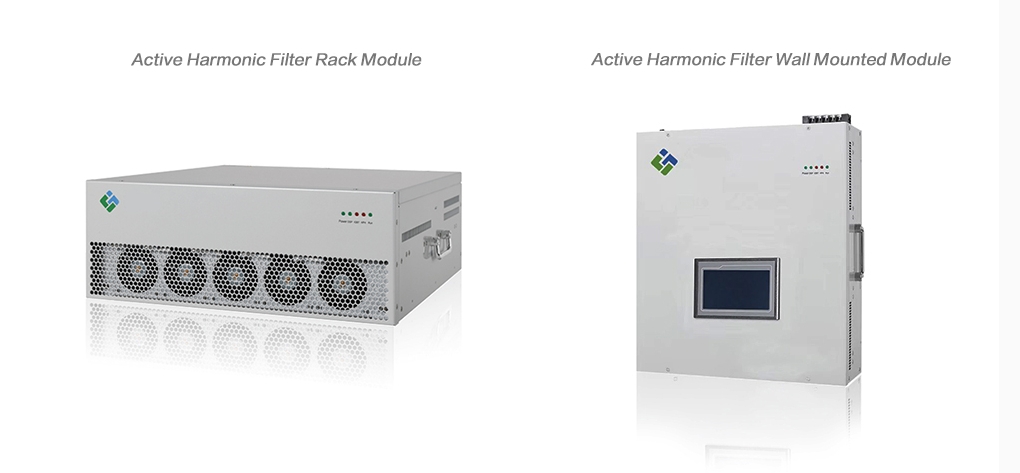

Integration of YT Electric's Active Harmonic Filters

YT Electric offers state-of-the-art active harmonic filters designed to address the challenges of harmonic distortion in modern power systems. Their products leverage advanced IGBT technology and sophisticated control strategies to provide real-time harmonic mitigation.

Key Features of YT Electric's Active Harmonic Filters:

• High Compensation Accuracy: Capable of reducing current harmonic distortion to less than 5%, complying with international standards like IEEE-519.
• Modular Design: Scalable solutions that can be tailored to specific system requirements.
• User-Friendly Interface: Intuitive monitoring and control software for easy configuration and diagnostics.
• Energy Efficiency: Low power loss design contributes to overall system efficiency.
• Reliability: Robust components and design ensure long-term, maintenance-free operation.
• Versatility: Suitable for a wide range of applications, including industrial plants, commercial buildings, and renewable energy systems.

Benefits of Implementing YT Electric's Solutions:

• Improved Power Quality: Enhances system performance by mitigating harmonics effectively.
• Equipment Protection: Reduces stress on electrical components, extending their lifespan.
• Operational Savings: Energy-efficient design lowers operational costs over time.
• Regulatory Compliance: Assists in meeting stringent power quality standards and regulations.
• Easy Integration: Designed for seamless installation in new or existing systems.

By integrating YT Electric's active harmonic filters, facilities can achieve a higher level of power quality, ensuring smooth operation of sensitive equipment and preventing costly downtime due to harmonic-related issues.

Discussion and Conclusion

Harmonic distortion poses significant challenges in modern power systems, affecting equipment performance and system reliability. Selecting the appropriate mitigation technique is crucial for optimizing power quality and operational efficiency.

Key Takeaways:

• Active Shunt Solutions: Offer the most effective and flexible harmonic mitigation, with the added benefits of compact size and adaptability.
• Passive Solutions: May be suitable for simpler applications but lack flexibility and can introduce resonance issues.
• Active Series Solutions: Provide harmonic reduction and regenerative capabilities but at higher costs and complexity.

Integrating advanced active harmonic filters, such as those provided by YT Electric, can significantly enhance power quality. Their solutions offer precise harmonic compensation, improved energy efficiency, and ease of integration, making them an excellent choice for modern power systems facing harmonic challenges.

By carefully evaluating the advantages and disadvantages of each technique and considering factors like system requirements, cost, and efficiency, engineers and facility managers can make informed decisions to effectively mitigate harmonics and ensure the reliable operation of their electrical systems.
