Static Var Generators (SVGs) are advanced power electronic devices used for dynamic reactive power compensation. Their quick response time is one of their key advantages, especially in applications with rapidly fluctuating loads, such as welding machines.

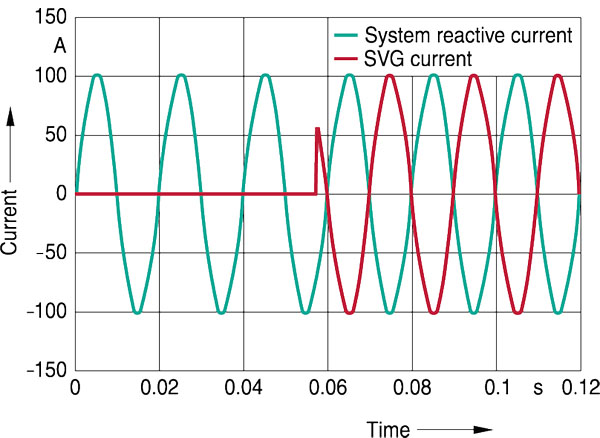

1. SVG Response Time:

• Rapid Response: SVGs are capable of responding to changes in reactive power demand in real-time, with response times typically in the range of a few milliseconds (less than 5ms). This makes them highly effective for stabilizing power factor and voltage in dynamic environments.
• Continuous Adjustment: Unlike traditional capacitor banks that switch in discrete steps, SVGs provide a continuous adjustment of reactive power. This allows them to maintain precise control over power quality, even as the load changes rapidly.

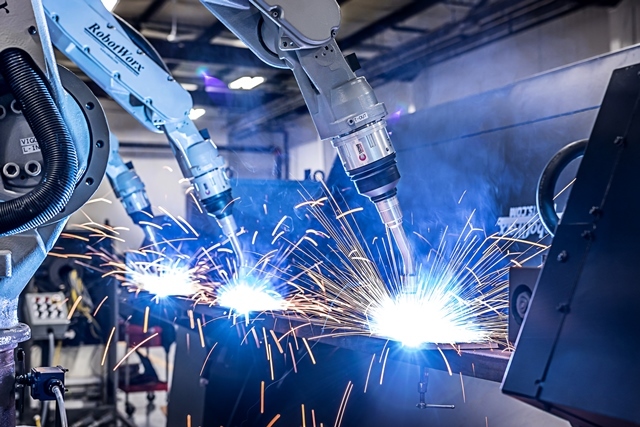

2. Welding Machines and Power Quality:

• Impact on Power Quality: Welding machines are known for causing significant power quality issues due to their highly variable load profiles. They can cause voltage fluctuations, flicker, and harmonic distortion in the electrical network.
• High Inrush Currents: During the welding process, especially in arc welding, there can be high inrush currents and sudden changes in load, which can challenge the stability of the electrical system.
• Reactive Power Demand: Welding machines often have a significant reactive power component, which can cause the overall power factor to drop if not properly compensated.

3. SVGs in Welding Applications:

• Real-Time Compensation: SVGs are well-suited to handle the rapid load changes and high reactive power demands of welding machines. Their fast response time ensures that reactive power is quickly compensated, maintaining a stable power factor even during the most demanding welding operations.
• Voltage Stabilization: By providing dynamic reactive power compensation, SVGs help stabilize the voltage in the network, reducing the risk of voltage dips and flicker that can occur due to the operation of welding machines.
• Harmonic Mitigation: While SVGs are primarily used for reactive power compensation, they can also be combined with Active Harmonic Filters (AHFs) to address harmonic distortion caused by welding machines, ensuring comprehensive power quality management.

4. Benefits of Using SVGs with Welding Machines:

• Improved Power Factor: SVGs help maintain a high power factor, which reduces energy losses and can help avoid penalties from utility companies.
• Enhanced Equipment Performance: By stabilizing voltage and reducing flicker, SVGs can improve the performance and lifespan of welding machines and other sensitive equipment in the same network.
• Reduced Downtime: The quick response of SVGs minimizes the risk of voltage-related issues that could lead to production downtime, especially in environments where welding is a critical process.

The rapid response time of Static Var Generator makes them an ideal solution for improving power quality in environments with welding machines. By providing real-time reactive power compensation, SVG help stabilize voltage, maintain a high power factor, and reduce the impact of welding-induced power quality issues on the overall electrical network. This results in better equipment performance, lower energy costs, and a more reliable power supply.
