Introduction: The High Cost of the "Invisible Killer" in July 2026

As we move further into the industrial energy transition of 2026, the reliance on diesel generators, gas turbines, and isolated microgrids remains a mission-critical reality for remote mining operations, large-scale agriculture, and telecommunication base stations. Yet, an "invisible killer" continues to bleed operational budgets worldwide: 3-phase load imbalance.

Electrical facility managers often misdiagnose frequent generator tripping as poor fuel quality or aging engine components. However, the true root cause is often purely scientific. When single-phase loads—such as site offices, lighting arrays, or specialized CNC machinery—are unevenly distributed across the three phases, the generator’s magnetic symmetry is destroyed. The results are devastating: localized overheating, unpredictable voltage dips, and eventually, catastrophic alternator failure.

At YT Electric, with 17 years of specialized expertise in Power Quality engineering, we understand that "Making Every Watt Count" requires more than just turning on the power. This technical deep-dive explores why traditional passive compensation fails in weak grids and how our SPC (Smart Power Factor Correction) technology provides the active, millisecond-level response required to stabilize high-value power assets.

1. The Physics of Catastrophe: Why Imbalance Kills Alternators

A generator is a precision-engineered piece of rotating machinery designed for magnetic equilibrium. When loads are balanced, the magnetic fields within the stator cancel each other out perfectly at the neutral point. When they are not, the laws of physics turn against the machine.

Zero-Sequence Current: The Neutral Line Fire Hazard

In a perfectly balanced 3-phase 4-wire system, the vector sum of currents at the neutral point is zero. In an imbalanced system, this "residual" current flows back through the neutral conductor. In many industrial sites, neutral lines are undersized. Chronic zero-sequence current leads to insulation breakdown and hidden fire risks within cable trays—a problem that traditional circuit breakers often fail to detect until it is too late.

Negative Sequence Flux and Winding Stress

Imbalance generates a "negative sequence" magnetic field that rotates in the opposite direction of the rotor. This creates severe mechanical vibration and excessive thermal stress on the copper windings. According to international standards like IEEE 519, even a modest 5% voltage imbalance can cause a 25% increase in stator winding temperature. For an alternator, every 10°C increase above its thermal rating effectively cuts its operational lifespan in half.

2. The Failure of Tradition: Why Static PFC Capacitors are Obsolete for Generators

For decades, the industry-standard response to poor power quality was the installation of static capacitor banks (PFC). While cost-effective for stable utility grids, they are frequently a liability for isolated generators:

· • The Resonance Trap: Capacitors can create harmonic resonance with the generator’s internal inductance. This amplifies THDi (Total Harmonic Distortion), causing sensitive PLCs and servers to reset randomly.

· • Switching Surges: Every time a capacitor step is engaged, it creates a transient voltage surge. For a diesel generator’s electronic governor, this surge can trigger internal safety relays, resulting in an immediate "nuisance trip."

· • The Passive Limitation: Capacitors only compensate for reactive power. They are physically incapable of shifting active energy between phases to solve a current imbalance. They fix the symptoms, but never the cause.

In-Article Performance Visualization

Visual: High-precision waveform comparison. Show the neutral current dropping from 120A to <5A after SPC activation.

3. The YT Electric SPC: An Active Power Electronics Revolution

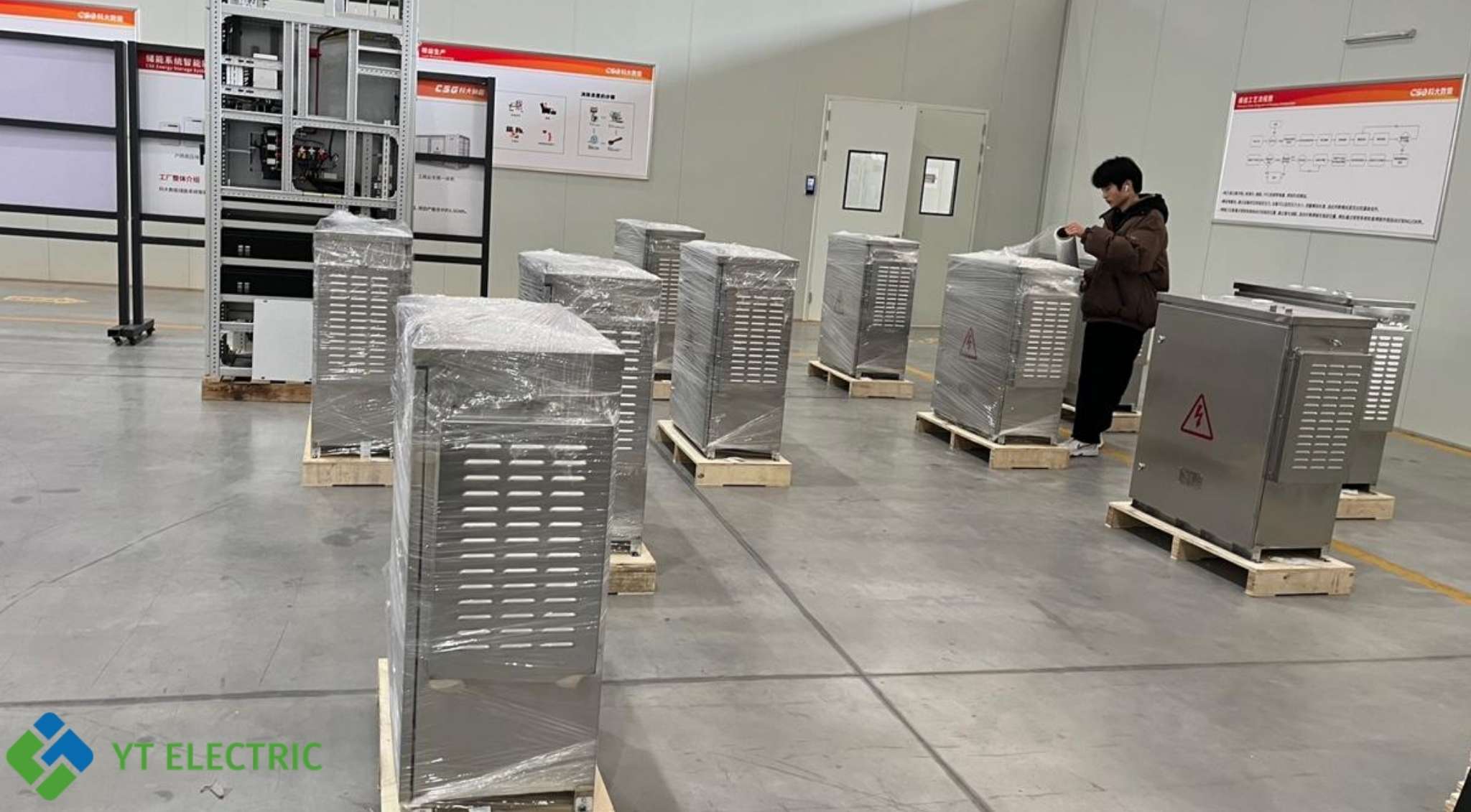

The YT Electric YTPQC-SPC series is not a passive component—it is a high-speed, DSP-controlled Voltage Source Inverter (VSI) system designed for the rigors of 2026 industrial environments.

Advanced 3-Level Topology: Reliability by Design

Most competitors still rely on 2-level converters. Our SPC utilizes a sophisticated 3-level topology that halves the voltage stress (dv/dt) on each IGBT module. This architectural choice significantly reduces electrical aging of the generator’s insulation and achieves a peak system efficiency of 98.5%. Higher efficiency means less heat dissipation, allowing for a more compact and reliable footprint.

25.6kHz High-Frequency Sampling: Millisecond Mastery

Industrial loads in 2026—from robotic welders to variable speed pumps—change in the blink of an eye. The YT SPC operates with a 25.6kHz switching frequency, sampling the grid hundreds of times within a single cycle. When it detects an imbalance, it uses its internal DC-link capacitors to "borrow" active power from the lightly loaded phases and "inject" it into the heavily loaded ones. This balancing act is completed in ≤10ms—faster than any physical load fluctuation, ensuring your generator sees a steady, balanced load at all times.

4. Technical Benchmarks: YT Electric SPC vs. Traditional Solutions

5. Engineered for Extremes: 45°C Full-Load Durability

In remote regions like the Atacama Desert or the mining hubs of Southeast Asia, ambient temperatures regularly exceed 40°C. Most power electronics suffer from "derating," where the system automatically reduces its capacity to prevent overheating. YT Electric’s hardware is specifically over-engineered for these conditions.

Our modules utilize an intelligent forced-air cooling system with speed-controlled PWM fans and a specialized anti-corrosive "Three-proof" coating on all PCBAs. This enables the SPC to maintain its full 100% rated output at 45°C. Whether mounted in a high-temperature plant room or a remote outdoor pole (IP54), the SPC ensures that your power source remains protected even when the environment is hostile.

6. Global Success Case: Chilean Copper Mine Stability

In a high-altitude copper mining project in Chile, a fleet of 800kVA Cummins diesel generators was experiencing chronic synchronization errors and alternator overheating. Investigation revealed a persistent 35% current imbalance caused by single-phase auxiliary camp loads. After installing two 150kvar YT Electric SPC modules, the neutral current was slashed from 155A to a steady 4A. The tripping stopped immediately, and the client reported a 9.2% reduction in fuel consumption due to the restored magnetic efficiency of the alternators.

7. FAQ: Engineering Insights for Site Managers

Q: Is SPC compatible with different generator manufacturers?

A: Yes. Because SPC is an "active load" and does not rely on passive resonance, it is 100% compatible with diesel, gas, and hybrid generators from Cummins, Caterpillar, Perkins, and others.

Q: Can we monitor the power quality remotely?

A: Every YT Electric module comes standard with Modbus RTU and TCP/IP support. We also provide optional 4G/WiFi modules for real-time cloud monitoring, allowing you to track imbalance and power factor from your smartphone anywhere in the world.

Conclusion: Future-Proofing Your Industrial Power Strategy

In the competitive landscape of 2026, operational uptime is the ultimate currency. Investing in a 3-phase load balancer is no longer a luxury—it is a strategic necessity to protect high-capital assets like generators.

YT Electric is committed to the mission of "Making Every Watt Count." By eliminating the "invisible killer" of load imbalance, we empower you to run your operations with confidence, efficiency, and zero downtime.

Contact our global engineering team at service@yt-electric.com for a comprehensive Power Quality Audit today.
