Single-Phase vs. Three-Phase Power

Alternating current (AC) power supplies most of the electricity to homes and businesses. Single-phase and three-phase power supplies are two types of alternating current with different uses.

People mainly use single-phase in homes and small businesses. Three-phase is common in industries and larger commercial places that need more power.

Therefore, for businesses, choosing the right type of electrical power for their needs is crucial. Protecting that power with a suitable Uninterruptible Power Supply (UPS) system is also essential to ensure continuous operation.

What is single-phase power?

Single-phase power refers to a two-wire AC power circuit used to distribute electricity. Users commonly use it for smaller loads like lighting and heating. For larger equipment, like electric motors, users usually need three-phase power.

How does single-phase power work?

Single-phase power uses a phase wire (power wire) and a neutral wire. In this setup, current flows between these two wires, in an alternating direction. The energy flows one way through the phase wire to the load and reverses through the neutral wire. The voltage alternates 50 to 60 times per second, completing a full cycle with every 360-degree phase change.

What is three-phase power?

Three-phase power is a system that uses three wires to generate, transmit, and distribute alternating current. This polyphase system is important for electric grids. People often use it to provide electricity to data centers and industrial buildings that need a lot of power.

How does three-phase power work?

Three-phase power is important because it can deliver much more electricity efficiently compared to single-phase power. Single-phase power is suitable for a wide range of applications. However, three-phase power is necessary for large data centers and businesses that need a lot of energy.

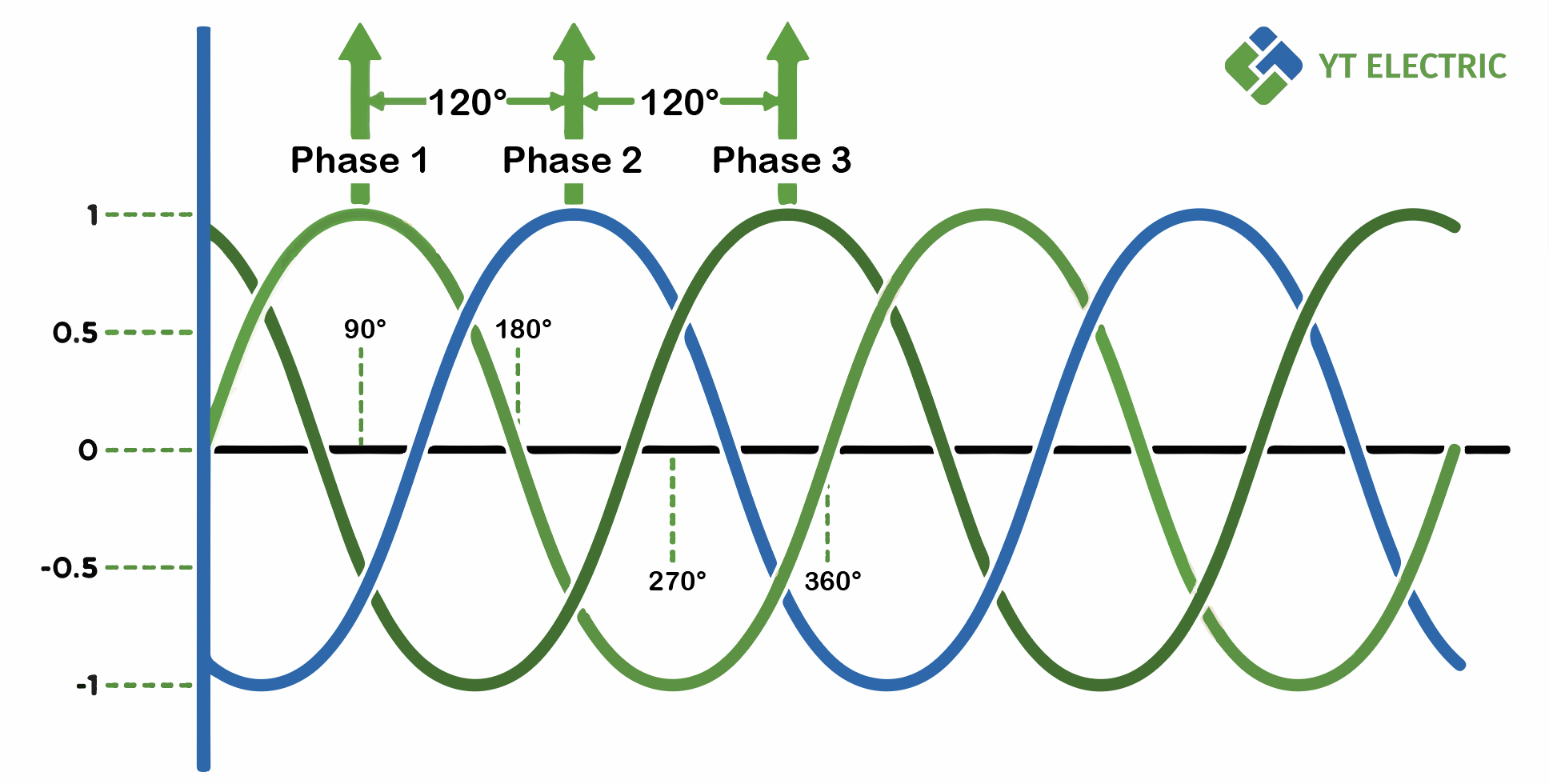

Three-phase power operates with three separate currents, each offset by one-third of a full cycle. In single-phase systems, the two hot wires are always 180 degrees apart.

In contrast, the system spaces three-phase currents 120 degrees apart. This means that when one wire reaches its peak current, the other two do not, ensuring a constant power supply. As a result, three-phase power provides a steady flow without the peaks and troughs typical of single-phase systems.

More Waves bring less Cost

A three-phase circuit provides more power density than a single-phase circuit. This means it can deliver the same amperage using smaller wires. This makes three-phase systems more efficient. Three-phase power can provide nearly double the power of single-phase circuits while only needing one extra wire.

Using three-phase power can lower electrical costs by reducing current requirements and wire size. This efficiency means that we need less space for cabling. This cuts operating costs and delays the need for new investments. It also supports the future growth of infrastructure.

Three-phase power is popular in high-density IT installations and data centers. This is because of its cost savings and flexibility. Other industries, such as warehouses, fabrication, and manufacturing, also benefit from the efficiency of three-phase power.

Difference between Single-Phase and Three-Phase Power

• Wiring: Two wires, known as the phase and neutral, supply single-phase power. In contrast, three-phase power needs three wires, or four if you include the neutral wire.
• Voltage: The voltage for single-phase power is typically 230V, while three-phase power operates at 415V. While at YT Electric, we provide three-phase devices from 200V-690V.
• Wiring Requirements: For the same amount of power, single-phase systems require more wiring than three-phase systems.
• Efficiency: Three-phase power supplies are more efficient. They can transfer more power than single-phase supplies.
• Complexity: Single-phase power uses only two wires. This makes its network simpler than a three-phase system. A three-phase system usually has four wires if it includes a neutral wire.

Determining whether your business needs single-phase or three-phase power

• Assess Your Power Needs:

Load Calculation: Calculate the total wattage of all equipment and machinery that will be used. This includes lights, appliances, and tools.

Power Rating: Check the power rating (in watts or kilowatts) of the machines you plan to use.

• Consider Your Equipment:

Type of Equipment: If your equipment is designed for three-phase power, you’ll need to use that.

Motor Size: Motors above 5 HP (approximately 3.7 kW) typically benefit from three-phase power.

• Future Expansion:

Consider your business growth plans. If you anticipate needing more power in the future, three-phase may be a better choice.
