Capacitive reactive power
The reactive current of the load is generally inductive, so we can use capacitor bank to compensate it. However, the reactive power generated by loads such as UPS and charging pile is capacitive. Capacitor banks cannot compensate capacitive reactive power, so the latest reactive power compensation technology SVG Static var generator needs to be used to compensate capacitive reactive power

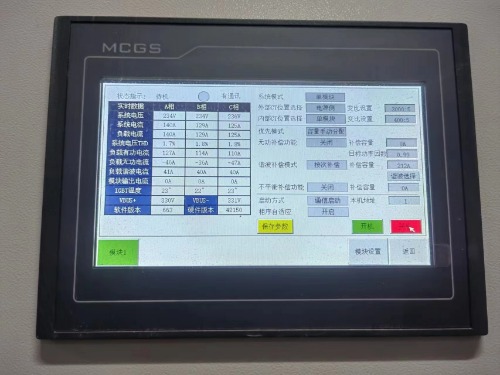

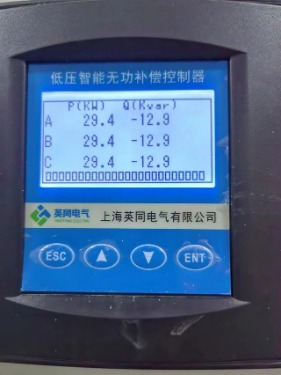

As there are many UPS and charging piles under the transformer shown above, the overall reactive power is capacitive, and the current distortion rate reaches about 30%. After installing our AHF, the power factor of the transformer is compensated to 0.99 and the grid harmonics are filtered.
YTPQC-SVG Static Var Generator
With high performance, compact, flexible, modular and cost-effective design, YTPQC Static Var Generator(SVG) provides an instantaneous and ultra fast response to power quality problems in low voltage electric power systems.
YTPQC SVG works as a dynamic reactive power source, adopts high-speed computation components like DSP/IGBT, combining with super precise control program(Adapt algorithem), following the grid current variation in real time, improving Power Factor value to 0.99 (1) within 5ms.
With no risk of over- or under-correction, YTPQC SVG can correct the power factor of the system to > 0.99 under all load conditions. As well as this, YTPQC Static Var Generator can correct the power factor of both leading and lagging loads and can correct unbalanced networks.
Some Project Examples
Projects(Some examples) |
Products |
Model |
South State Grid(Shenzhen) |
YTPQC-SVG |
|
State Grid(Zhejiang) |
Static Var Generator |
YTPQC-SVG |
Jingcheng Project |
YTPQC-AHF |
|
State Grid(Shao xing) |
Static Var Generator |
YTPQC-SVG |
Shaoxing Jianhu Project |
Static Var Generator |
YTPQC-SVG |
Shaoxing Yangjinghu 7# Project |
Static Var Generator |
YTPQC-SVG |
Shanghai Hezhuo Project |
Static Var Generator |
YTPQC-SVG |
Yongzhe Poject(Zhejiang) |
Static Var Generator |
YTPQC-SVG |
Wynn Properties Tianze House Project |
YTPQC-CSVG |
