YTPQC-HPFC hybrid Static Var Generator adopts the configuration scheme of combining YTPQC-ASVG Advanced Static var Generator and switching capacitor/reactor, and implements different reactive compensation schemes according to the actual needs of users on site, so as to achieve the best combination of price and effect.
YTPQC-HPFC hybrid reactive power compensation device consists of two parts: Static Var Generator and switching capacitor / reactor reactive compensation unit. In YTPQC-HPFC hybrid dynamic reactive power compensation device, each unit is designed and produced in the method of low power, small volume and low cost, and both of them are optional, and can be combined in the best and flexible way according to the actual reactive state of the site, so as to achieve the optimum ratio of operation effect and cost.
The Solution of YTPQC-HPFC
Hybrid reactive power compensation is widely used in residential distribution networks. The compensation capacity is generally configured according to 30% of the transformer capacity, and the SVG capacity and capacitor capacity are generally configured according to user needs. The transformer capacity of a substation in a Shanghai community is 800kVA, and a 240kvar YT-CSVG hybrid dynamic var compensator is configured on site, of which the SVG capacity is 50kvar and the capacitor capacity is 190kvar. After the equipment is running, the on-site power factor rises from 0.90 to about 1.

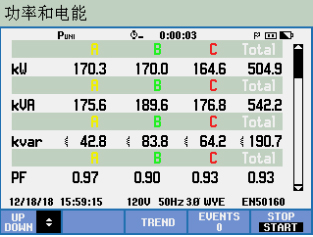

The Technical Performance

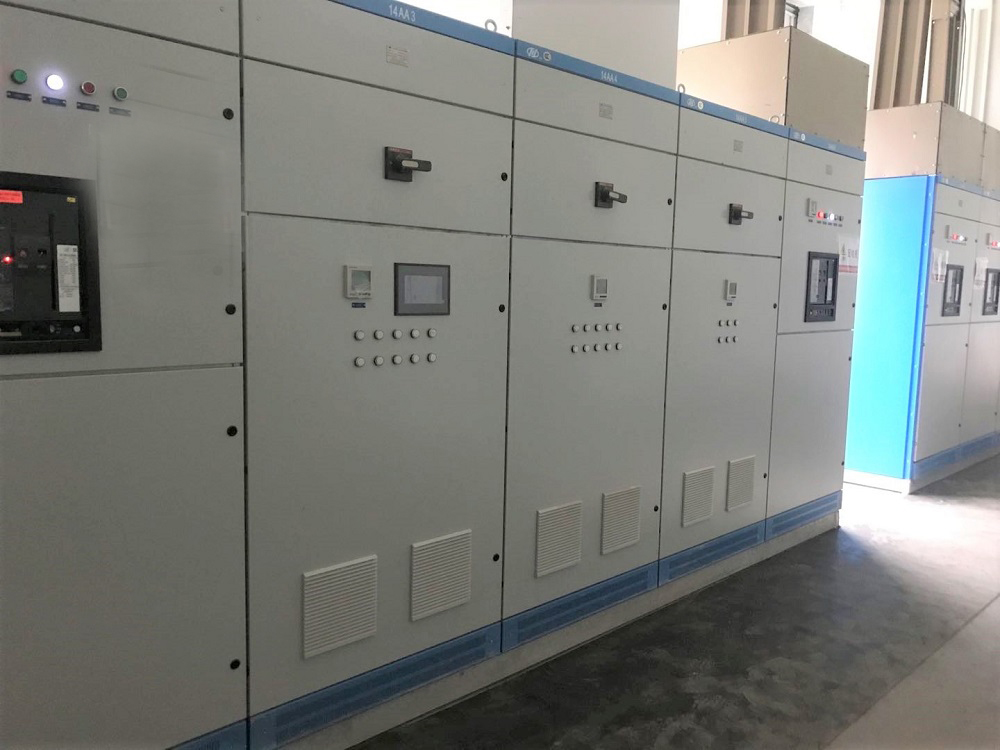

Photo at Site
