YTPQC-SVG Static Var Generator
YTPQC-SVG (Static Var Generator / Compensator) detects load current through external current transformers (CT’s) on-line and analyzes reactive component of the load current by DSP controller, then control IGBT inverter to generate reactive current and compensates the load reactive current to meet the target of line power factor.
The SVG compensates the reactive energy in your installation, saving in two ways:
The reactive energy correction reduces the current flow through the installation's conductors, avoiding any overheating and the triggering of protections. In addition, Static Var Generator optimises the performance of your installation's power transformer.
Eliminates the utility company's monthly surcharge for both inductive and capacitive energy.
The installation which need Reactive Power Control in both Capacitive & Inductive Kvar mode, The Static Var Generator (STATCOM) is right recommendation.
The role of the reactive power compensation cabinet is to do reactive power compensation, provide the necessary reactive power with the help of reactive power compensation equipment, improve the power factor of the power grid and electrical equipment in the power supply system, reduce the loss of power supply transformers and transmission lines, and improve The power supply efficiency of the power grid can improve the power supply environment and improve the quality of the power grid. At present, when assembling the interior of the reactive power cabinet, a mounting bracket is used to install and fix various electronic components, but the existing When the mounting bracket of the reactive power cabinet is actually used, because the fixed block of the mounting bracket is generally fixed on the mounting bracket, and its position cannot be adjusted, it is difficult to assemble and fix electronic components of different sizes question.
Aiming at the deficiencies of the prior art, the utility model provides a small SVG(Static Var Generator) reactive power cabinet whose internal mounting bracket adopts a combined structure, which has the advantages of convenient installation of electronic components of different sizes, etc., and solves the problems of the existing reactive power cabinet. Problems with mounting electronic components of different sizes.

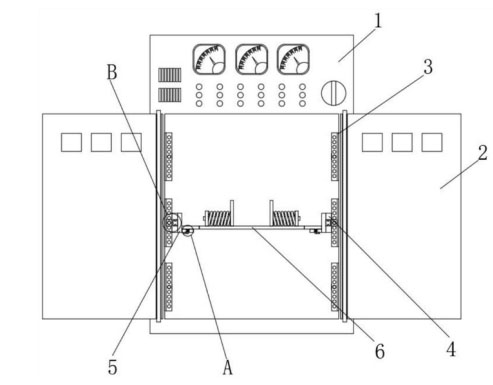

The utility model patent relates to the technical field of reactive power cabinets, and specifically discloses a small SVG reactive power compensation cabinet whose internal mounting bracket adopts a combined structure, including a reactive power cabinet main body, a docking block and a receiving plate. Door bodies are movably installed on both sides, and installation blocks are fixedly connected to the left and right sides of the inner wall of the reactive power cabinet. A connecting block is movably connected on one side; in the present invention, a mounting block is arranged on the main body of the reactive power cabinet, and at the same time, it cooperates with the docking block, which can facilitate the supporting and fixing of the receiving plate, and the movable block on the receiving plate is used to cooperate with the receiving plate. The setting of the upper first spring is convenient to use the movable block to clamp and fix the electronic components, and then to adapt to different sizes of electronic components for assembly, and the setting of the movable rod can ensure the movable block when the movable block moves. stability.
