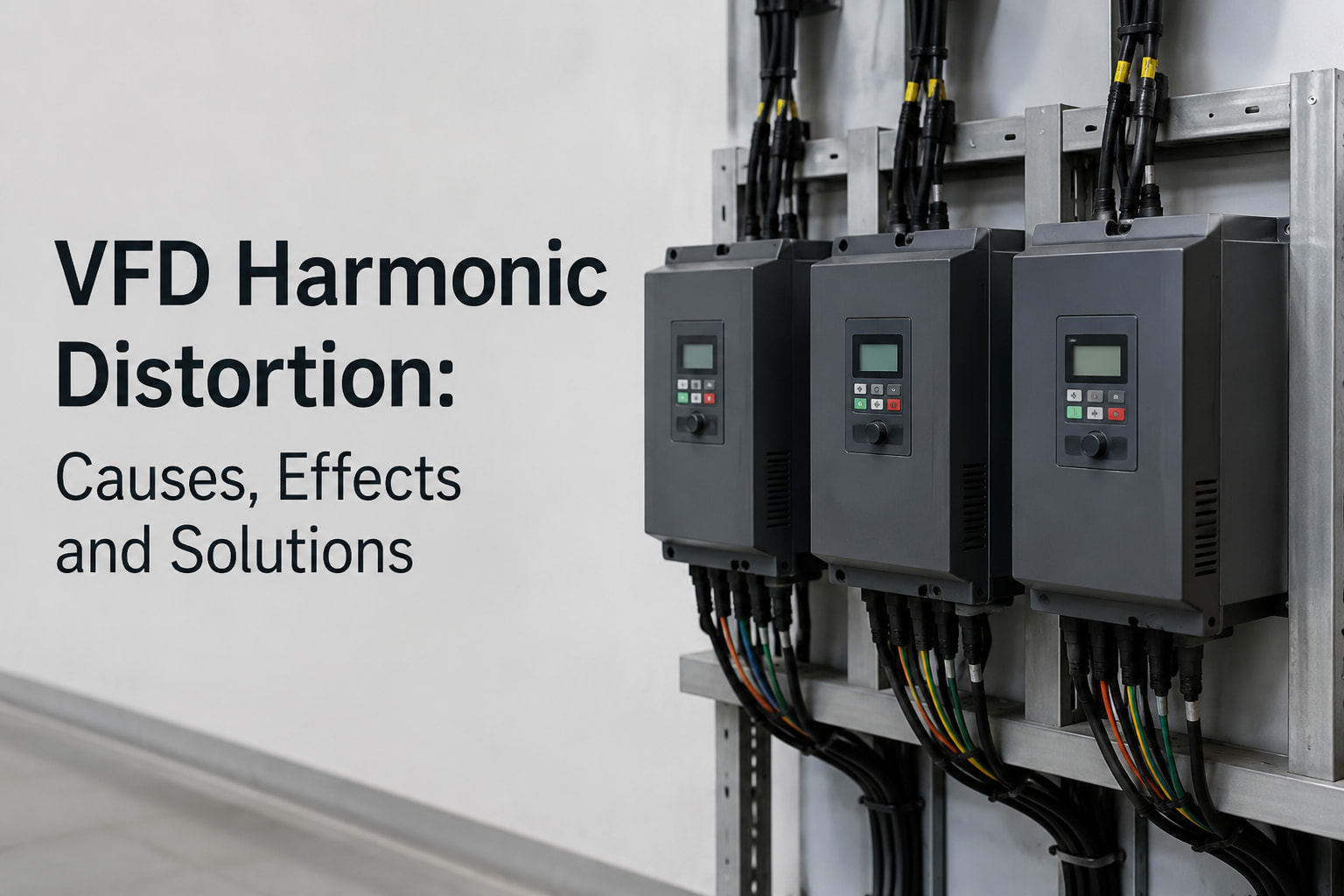

Why Variable Frequency Drives Cause Harmonic Distortion
Variable frequency drives are widely used in modern factories. They control motor speed, improve process control, and make many systems more energy efficient.
However, variable frequency drives also create harmonic distortion.
The problem comes from the way variable frequency drives draw current from power supplies. They do not draw current in a smooth sine wave. They draw current in short pulses.
These current pulses create extra frequencies in the electrical network. This increases total harmonic distortion THD and reduces power quality.
One variable frequency drive may not create a major problem. A large group of variable frequency drives can create serious harmonic distortion across the whole facility.
This article explains why variable frequency drives cause harmonic distortion, how VFD harmonics affect industrial power supplies, and how an active harmonic filter can reduce total harmonic distortion THD.
Variable frequency drives control the speed and torque of electric motors.
They change the frequency and voltage supplied to the motor. This allows the motor to run at the speed required by the process.
Variable frequency drives are common in:
These systems become more energy efficient because the motor does not always run at full speed.
For this reason, variable frequency drives are now a standard part of industrial automation.
The benefit is clear. The challenge is harmonic distortion.
Most variable frequency drives use a rectifier at the input stage.
The rectifier changes AC power into DC power. The inverter then changes the DC power into controlled AC power for the motor.
During this process, variable frequency drives draw current in pulses.
The current waveform is no longer smooth. It becomes distorted.
This distortion creates harmonic currents above the main supply frequency. These harmonic currents flow through cables, transformers, switchgear, and power supplies.
The result is higher total harmonic distortion THD.
Variable frequency drives are nonlinear loads. Nonlinear loads do not draw current in the same shape as the voltage waveform.
This is the main reason variable frequency drives create harmonic distortion.
Total harmonic distortion THD shows how much the electrical waveform differs from a clean sine wave.
A low total harmonic distortion THD level means the waveform is close to normal.
A high total harmonic distortion THD level means harmonic currents are affecting the electrical network.
Engineers often measure:
Variable frequency drives usually create current distortion first. That distorted current can then affect voltage quality across the system.
This is why total harmonic distortion THD should be measured at the main distribution point and near major loads.
VFD harmonics do not stay inside the drive.
They flow back into the power supplies and affect other equipment connected to the same network.
This can create several problems.
Harmonic currents increase losses inside transformers.
The transformer carries more RMS current than expected. This creates more heat in the windings and core.
High total harmonic distortion THD can cause:
A transformer may operate below its rated load and still run too hot.
The extra heat may come from harmonic distortion, not from normal overload.
Harmonic currents also flow through cables and switchgear.
This increases electrical losses and temperature.
The result may include:
Power supplies with many variable frequency drives often need a full power quality review.
Many factories use capacitor banks for power factor correction.
Capacitor banks can react badly in systems with high harmonic distortion.
Harmonic currents may increase the current passing through the capacitor bank. In some cases, the capacitor bank can interact with the system and create harmonic resonance.
This can cause:
A capacitor bank does not remove VFD harmonics.
This is why facilities with many variable frequency drives should check harmonic levels before adding or replacing a capacitor bank.
Variable frequency drives improve motor control. However, high harmonic distortion can still affect the wider electrical system.
Other motors, relays, PLCs, and control systems may experience:
The facility may continue running, but equipment reliability becomes worse.
Variable frequency drives are energy efficient because they reduce unnecessary motor speed.
A pump or fan often does not need to run at full output all day. Variable frequency drives allow the motor to match the real process demand.
This reduces energy use.
However, energy efficient equipment can still create harmonic distortion.
Energy efficiency and power quality are not the same thing.
A variable frequency drive may reduce active energy use while increasing total harmonic distortion THD.
This means a good industrial design should consider both:
Ignoring one side can reduce the value of the other.
Harmonic distortion is not always easy to see.
A facility may have VFD harmonics for months before a clear failure appears.
Common warning signs include:
These signs do not always prove that variable frequency drives are the cause.
Measurement is still required.
A single current reading is not enough.
Engineers should use a power quality analyzer to measure the real electrical condition.
Important values include:
The measurement should cover different operating periods.
Some variable frequency drives may run only during peak production. Others may stop during light load.
The harmonic level can change during the day.
A correct study should capture these changes.
Passive filters can reduce selected harmonic orders.
They can work well when the load remains stable and the harmonic profile is predictable.
The problem is that many modern factories do not have stable loads.
Variable frequency drives start, stop, and change speed. Production demand also changes.
This changes the harmonic current.
A fixed passive filter may not match every operating condition.
It may also create tuning or resonance problems if the electrical system changes.
For dynamic loads, a more flexible solution may be required.
An active harmonic filter measures harmonic currents in real time.
It then injects an opposite current into the electrical system.
This compensation current cancels the unwanted harmonic current.
The active harmonic filter adjusts as the load changes.
This makes it suitable for facilities with many variable frequency drives.
An active harmonic filter can help:
Unlike a fixed passive filter, an active harmonic filter follows the real harmonic condition.
This is useful in factories where variable frequency drives operate at different speeds and load levels.
Active harmonic filters are often used in:
These sites often use many variable frequency drives and other nonlinear loads.
The active harmonic filter is normally installed near the main harmonic source or at the main distribution point.
The best location depends on the system design.
The active harmonic filter should be selected from measured harmonic current.
It should not be selected only from total motor power.
Engineers should check:
Correct sizing is important.
An undersized active harmonic filter may not reduce harmonic distortion enough.
An oversized unit may increase project cost without adding value.
The correct solution begins with real power quality data.
Variable frequency drives are essential for modern industry.
They improve motor control and make many systems more energy efficient.
However, variable frequency drives are nonlinear loads. They draw current in pulses and create harmonic distortion.
High total harmonic distortion THD can affect transformers, cables, capacitor banks, switchgear, and industrial power supplies.
The solution is not to remove variable frequency drives.
The solution is to control VFD harmonics.
A proper power quality study should measure total harmonic distortion THD, load conditions, and harmonic current.
When the load changes often, an active harmonic filter can provide real-time harmonic mitigation.
This helps protect equipment, improve power quality, and maintain reliable operation in facilities that depend on variable frequency drives
