SiC Active Harmonic Filter: Why Ultra-Compact Architecture Maximizes Efficiency in Modern Industrial Power Systems

Modern industrial facilities, AI hyperscale data centers, semiconductor fabrication plants, and commercial complexes face a dual engineering crisis: escalating non-linear loads (such as 6-pulse variable frequency drives, server SMPS power supplies, and EV fast chargers) inject destructive harmonic currents, while electrical switchgear rooms face severe space and cooling limitations. When consulting engineers attempt to specify conventional silicon-based Active Power Filters, they often find that standard cabinets are too bulky, generate excessive parasitic heat, and require costly electrical room expansion or HVAC upgrades.

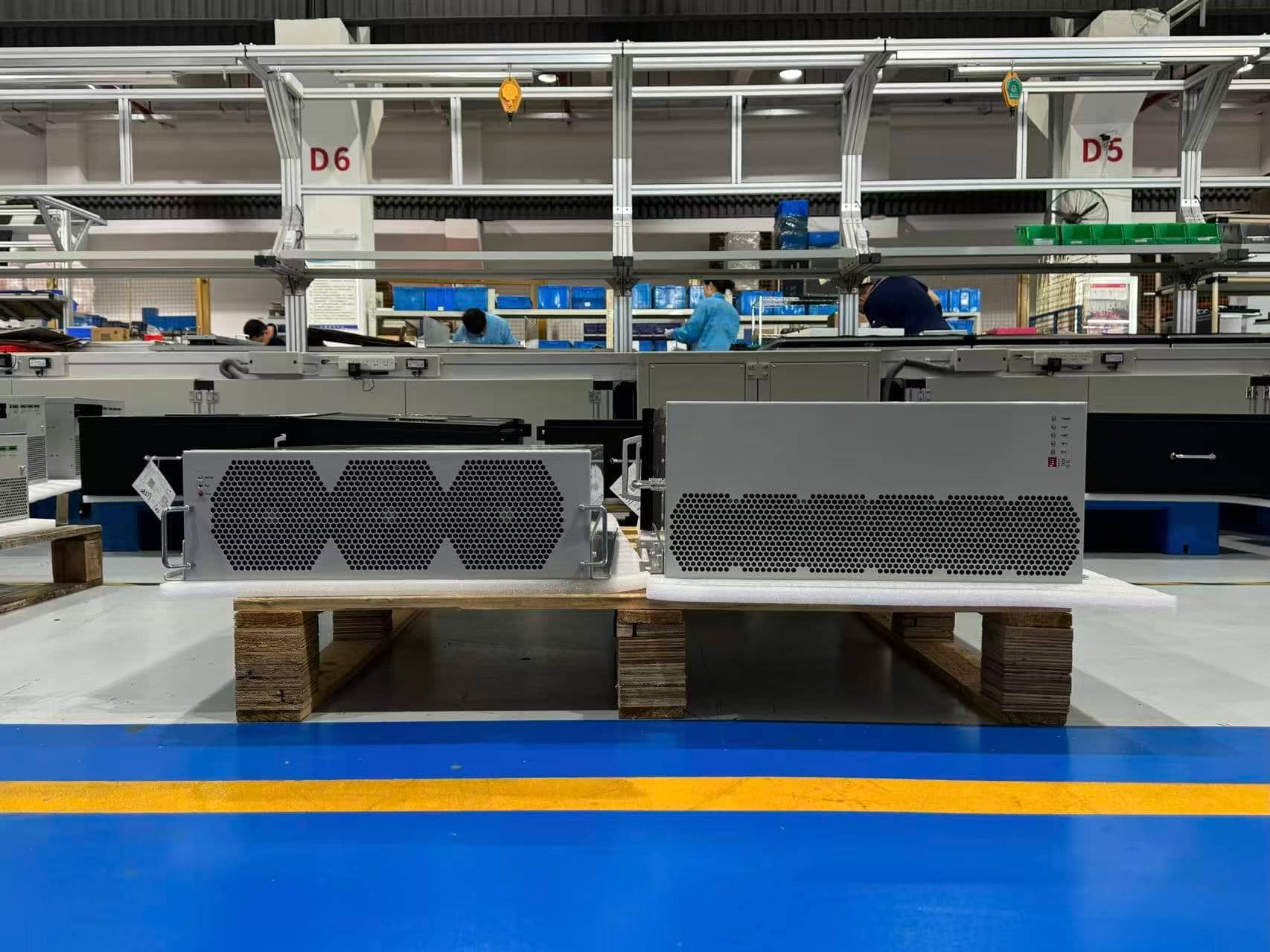

Figure 1: High-Density Silicon Carbide (SiC) Active Harmonic Filter (AHF) Module Achieving 50% Volume Reduction vs. Conventional Silicon IGBT

The Semiconductor Physics: Wide-Bandgap Silicon Carbide vs. Silicon IGBT

The fundamental bottleneck in traditional active harmonic filter design lies in the physical material limits of silicon (Si) bipolar junction transistors. Standard silicon IGBTs suffer from significant reverse recovery charge (Q_rr) and high turn-on and turn-off switching energy losses (E_on + E_off). Consequently, silicon-based filters are thermally constrained to switching frequencies between 10 kHz and 20 kHz. Pushing silicon IGBTs beyond 20 kHz causes catastrophic junction overheating and demands massive aluminum heatsinks and high-velocity cooling fans.

Silicon Carbide (SiC) represents a revolutionary wide-bandgap (WBG) semiconductor material with exceptional physical properties compared to standard silicon:

• 3× Wider Bandgap (3.26 eV vs. 1.12 eV): Enables a breakdown electric field strength nearly 10 times higher than silicon (2.8 MV/cm vs. 0.3 MV/cm), allowing ultra-thin drift layers with ultra-low on-state resistance (R_DS(on)).
• 3× Higher Thermal Conductivity (4.9 W/m·K vs. 1.5 W/m·K): Rapidly conducts heat away from internal junctions, permitting stable continuous operation at junction temperatures up to 175°C.
• Zero Reverse Recovery Losses: Unipolar SiC MOSFETs paired with SiC Schottky barrier diodes eliminate minority carrier tail currents, cutting dynamic switching losses by more than 70%.
• 50 kHz+ Switching Frequency Capability: High-frequency operation allows electrical engineers to reduce the physical inductance (mH) and physical volume of the output L-C-L filter coupling inductors by up to 60%, drastically shrinking total module dimensions.

Engineering & Technical Benchmark: Traditional Silicon IGBT vs. SiC MOSFET AHF

The following technical matrix provides an empirical, side-by-side engineering comparison between conventional 2-Level silicon IGBT filters, 3-Level silicon NPC filters, and next-generation 3-Level Silicon Carbide (SiC) MOSFET Active Harmonic Filters:

Modular SiC AHF Sizing & Footprint Optimization Matrix

Because Silicon Carbide modules require significantly smaller magnetic cores and heatsinks, switchgear panel builders and EPC contractors can integrate high-capacity filtering into standard 19-inch rack sub-racks or wall-mount enclosures without requiring specialized deep cubicles.

Real-World Field Case Study: Hyperscale AI Data Center Electrical Retrofit

An AI computing cluster facility operating 24 high-density GPU server rows experienced severe harmonic distortion and electrical room thermal bottlenecks. The initial electrical installation featured two 2,000 kVA step-down transformers supplying high-density server power distribution units (PDUs). Due to non-linear server power supply rectifiers, the low-voltage switchboard measured a total harmonic current distortion (THDi) of 34.2% at the 400V busbar, with significant 3rd, 5th, 7th, and 9th harmonic currents overloading transformer neutral bars.

The electrical room had zero floor space available for an additional standalone 800mm filter cabinet. Furthermore, the substation room air conditioning was already operating at 92% continuous cooling capacity.

Frequently Asked Questions (FAQs)

1. Why does Silicon Carbide (SiC) achieve higher efficiency under partial load conditions?

Traditional silicon IGBTs exhibit a fixed forward junction voltage drop (V_CE(sat) ≈ 1.5V–2.0V), which creates significant conduction losses even when running at 20% or 30% load. In contrast, SiC MOSFETs operate as true resistive channels (R_DS(on)) without a fixed threshold knee voltage. Conduction losses scale with the square of the current (I²R), resulting in exceptional efficiency (>98.5%) across partial load profiles (20% to 80%), which represents the typical operating range for industrial facilities.

2. Can SiC AHF modules operate in parallel with existing SVG or capacitor banks?

Yes. YT Electric SiC AHF modules feature dual-DSP intelligent control algorithms that automatically coordinate with existing Static Var Generators (SVG) or detuned capacitor banks. The system can be configured in "Harmonic Priority" or "Combined PF + Harmonic Mode", dynamically canceling harmonics up to the 50th order while leaving fundamental reactive power compensation to lower-cost capacitor banks or SVGs without any risk of harmonic resonance.

3. What warranty, lead time, and technical support accompany YT Electric SiC AHF modules?

All YT Electric modular Active Harmonic Filters and Static Var Generators include a standard 12-month (1-year) factory warranty (extendable to 2 years with a service fee). We provide comprehensive technical documentation, 3D CAD/STEP integration models, spare module swap programs, and 24/7 direct online technical support and remote commissioning assistance for certified panel builders and EPC partners worldwide.

4. Does retrofitting a SiC AHF require a total plant shutdown?

No. Modern modular SiC AHFs utilize split-core Current Transformers (CTs) and modular plug-and-play rack architecture. Split-core CTs can be safely clamped around existing busbars or main cables without de-energizing primary busbars. Individual filter modules can be pre-wired into spare cubicle compartments during brief scheduled maintenance windows, achieving seamless commissioning with zero unplanned operational downtime.
