As factories, data centres and commercial buildings fill up with variable-frequency drives (VFDs), switched-mode power supplies and LED lighting, harmonic distortion has become the silent saboteur of operational reliability. Excess harmonics overheat transformers, trip protective devices and erode energy efficiency—often without triggering an obvious alarm. Active Harmonic Filters (AHFs) tackle this challenge head-on by injecting precisely inverted harmonic currents in real time, flattening the current waveform seen by the utility and internal distribution network.
Most low-voltage AHFs on the market are rated for 380 V, 400 V or 480 V systems. A 440 V design offers two crucial advantages:
| Advantage | Why It Matters |
|---|---|
| Extra Voltage Headroom | Plenty of margin for +10 % utility over-voltage events, avoiding IGBT over-stress and derating. |
| Higher DC-link Voltage | Allows higher peak compensation current, enabling one frame size to mitigate more harmonic amperes. |
In short, 440 V models give you “room to breathe” when loads or grid conditions fluctuate.
Broad-band Harmonic Mitigation
Reduces Total Harmonic Current Distortion (THDi) to < 5 %, aligning with IEEE-519 and IEC-61000-3-4 limits.
Dynamic Reactive-Power Compensation
Instantly supplies or absorbs kvar to stabilise the power factor as process loads ramp, eliminating the need for mechanical capacitor banks.
Three-Phase Load Balancing
Balances asymmetrical single-phase loads, shrinking neutral currents and transformer overheating.
Ultra-Fast Response (< 20 ms)
IGBTs and DSP control react in one mains cycle—crucial for flicker-sensitive robotics and high-speed presses.

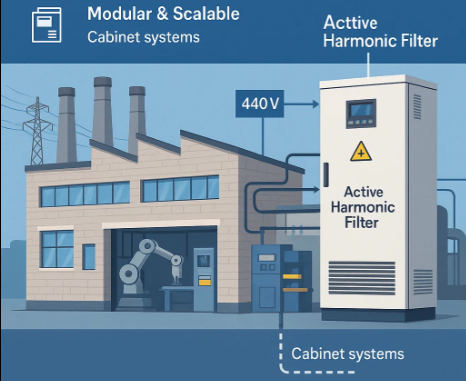

Modular & Scalable
Cabinet systems up to 600 A per frame; slide-in modules expand capacity without hot-work shutdowns.
Sensor-less Voltage-Control Mode
Operates without external CTs—handy where busbar access is limited.
| Feature | 440 V AHF | SVG (Static Var Generator) | Detuned/Passive Filter |
|---|---|---|---|
| Primary Function | Harmonics + kvar | kvar only | Harmonics (fixed) |
| Dynamic Response | < 20 ms | 15–30 ms | Seconds |
| Selectable Harmonic Bands | Yes (software) | N/A | Fixed reactor/capacitor tuning |
| Risk of Resonance | None | Low | Medium–High |
| CapEx per A·harmonic removed | Moderate | N/A | Low, but only at design freq. |
SVGs are excellent for pure reactive-power tasks. If harmonics exceed IEEE-519 limits, an AHF—or a hybrid AHF + SVG stack—is the more surgical option.
Measure Baseline Harmonics – Log at least one week of data on each main incomer.
Target THDi – Most utilities require ≤ 5 %; critical plants aim for ≤ 3 %
Leave 20 % Growth Margin – Factor in future VFD or UPS additions.
Decide on Top vs. Bottom Cable Entry – Check switchboard cubicle height.
Specify Bypass & Remote I/O – Enables maintenance without shutdown.
| Item | Before AHF | After 440 V AHF (300 A) |
|---|---|---|
| THDi | 18 % | 4.2 % |
| Power Factor | 0.79 | 0.98 |
| Annual Energy Penalties | USD 38 k | USD 0 |
| Payback | — | 23 months |
Upgrading to a 440 V Active Harmonic Filter is one of the fastest ways to “future-proof” a modern low-voltage network:
Cleaner waveforms mean cooler cables and transformers.
Real-time kvar support saves on utility penalties year-round.
Modular design scales as you electrify new production lines or data-hall rows.
If you’re planning a brownfield retrofit—or designing a greenfield facility—talk to our YTPQC engineering team about matching the right 440 V AHF frame size to your load profile. Your bottom line (and your maintenance crew) will thank you.
