Capacitor banks can fail under VFD harmonic loads. Learn how a three-level active harmonic filter reduces THDi and supports capacitor-bank protection.
A recurring VFD-plant problem looks like this: capacitor banks fail repeatedly even after replacement. The capacitors may not be the root cause. Nonlinear loads can inject 5th, 7th, 11th, and higher-order harmonic currents into the common bus, increasing capacitor current and thermal stress.
This risk appears in textile mills, plastic extrusion lines, HVAC plants, water systems, and other facilities with rapidly changing nonlinear loads. A fixed passive solution may not follow a changing harmonic spectrum, and an improperly detuned capacitor bank can amplify resonance.
YTPQC-AHF measures harmonic current and injects an equal-and-opposite compensating current. When correctly sized, installed, and commissioned, the system can reduce THDi at the PCC and help protect transformers, cables, switchgear, and capacitor banks from harmonic stress.
Why 3-Level Topology
A 2-level inverter switches each IGBT across the full DC bus voltage. High dv/dt stresses motor insulation, generates EMI, and raises switching losses. At 45°C ambient — common in Middle Eastern and Southeast Asian electrical rooms — thermal margin vanishes.
A 3-level topology splits the DC bus, creating a neutral point. Each IGBT switches at half the voltage. dv/dt drops roughly 50%. Output ripple decreases. Filter inductance shrinks. The module runs at full load at 45°C without derating.
In hot electrical rooms, thermal design matters as much as current rating. A three-level topology reduces the voltage stress on each switching device and can improve output-waveform quality and thermal margin. Always confirm the manufacturer derating curve for the actual enclosure, altitude, ventilation, and ambient temperature.
|
Parameter |
2-Level AHF |
3-Level AHF (YTPQC-AHF) |
|
DC bus voltage per IGBT |
100% |
50% |
|
dv/dt at output |
High — stresses insulation |
~50% lower — less EMI |
|
Output ripple |
Higher — larger filter needed |
Lower — cleaner waveform |
|
Switching loss |
Higher — shorter device life |
Lower — better thermal margin |
|
Operation at 45°C |
Derating or forced cooling required |
Full rated output |
|
Filter inductor size |
Larger — more copper, more heat |
Smaller — lighter module |

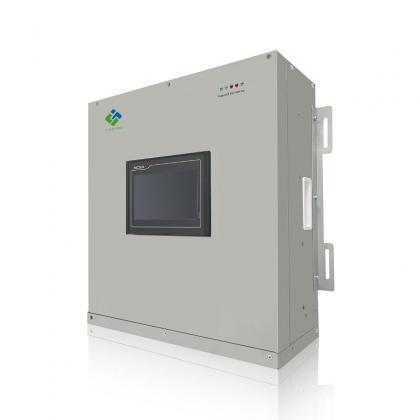

YTPQC-AHF active harmonic filter
Start with the harmonic spectrum, not total load current. Two identical 500 kVA transformers can need different AHF ratings.
Measure THDi and the individual harmonic spectrum with a suitable power-quality analyzer over a representative production cycle. Size the AHF from measured harmonic current, required residual distortion, background voltage distortion, CT location, load diversity, and ambient conditions. Include an agreed expansion margin and verify compliance at the PCC after commissioning.
|
Application |
Load Type |
THDi Before |
AHF Rating (% of load) |
Module Option |
|
Plastic extrusion |
VFD + heaters |
25–35% |
30–40% |
50–100 A, wall/rack |
|
HVAC chiller plant |
6-pulse VFD |
28–33% |
35–40% |
100–150 A, rack |
|
Data center UPS |
6-pulse rectifier |
25–30% |
30–35% |
50–75 A, rack |
|
Water pumping |
VFD + soft starter |
20–30% |
25–35% |
75–100 A |
|
Steel rolling mill |
DC drive + VFD |
20–40% |
35–50% |
150–200 A, cabinet |
|
Mining crusher |
High-power VFD |
25–40% |
35–50% |
150–200 A, cabinet |
YTPQC-AHF modules can operate in parallel, allowing capacity to be expanded as the load grows.
Confirm the supported module combination, cabinet capacity, and control architecture for the selected model.
Q: Works with existing capacitor banks?
A: Yes. The AHF handles dynamic harmonic cancellation. The capacitor bank supplies steady-state reactive power. Install detuning reactors on the capacitor bank to prevent harmonic amplification.
Q: Plant shutdown required?
A: Usually only the new feeder and CT installation require isolation, but the exact outage scope depends on the single-line diagram and site safety procedure. Commissioning should be completed under representative load conditions.
Q: Typical payback period?
A: Payback depends on utility penalties, avoided downtime, capacitor and contactor replacement costs, energy losses, and maintenance. Use the customer's bills and measured operating data instead of a generic payback claim.
Q: Maintenance required?
A: Follow the product manual and site conditions. Typical work includes cleaning filters, checking fans and terminals, reviewing alarms, and verifying compensation performance. Maintenance intervals vary with dust, temperature, and operating hours.
Harmonics surface as nuisance trips, hot neutrals, and dead capacitors. A 3-level active harmonic filter corrects them at the source — before damage spreads through the transformer, cables, and switchgear. It lets electrical assets operate at their designed temperature and lifespan.
Learn More
Explore YT Electric product specifications and application guidance: https://www.ytelect.com/active-harmonic-filter-ahf_p14.html
Reference: IEEE 519-2022, IEEE Standard for Harmonic Control in Electric Power Systems: https://standards.ieee.org/ieee/519/10677/
Need a site-specific solution? Share your single-line diagram, load list, measured power factor, THDi/TDD data, and ambient conditions with YT Electric. Our sales engineers can review the data and prepare a technical proposal.
