YT Hybrid Power Factor Correction: Section 2

The basic principle of the intelligent Hybrid Static Var Generator is that the Static Var Generator, the capacitor bank and the reactor bank together form a reactive power compensation system. The static var generator performs fast and high-precision reactive power compensation. The Capacitor Banks performs slow and stepped reactive power compensation.

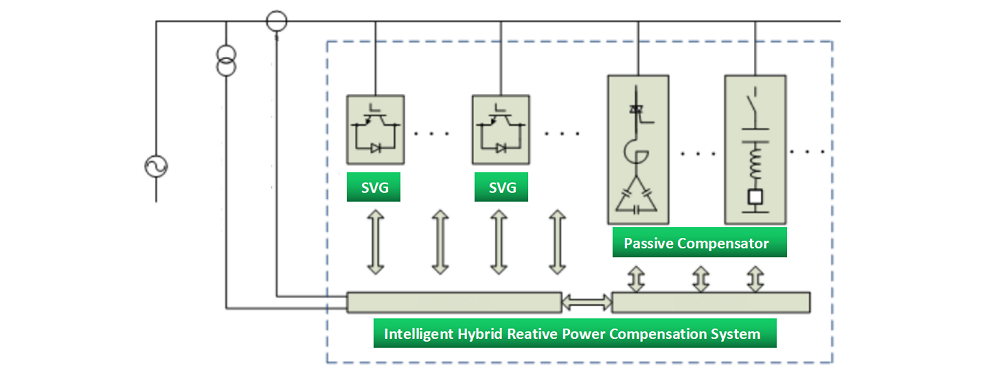

The intelligent Reactive Power Hybrid Compensation device consists of two parts - Static Var Generator (SVG) and Thyristor switching capacitor reactive power compensation (TSC). In the intelligent hybrid solution of reactive power compensation, each unit is designed and produced in a low-power, small-volume, and low-cost manner, and all are optional units, which can be optimally and flexibly combined according to the actual reactive power status on the site. Achieving the best ratio of performance to cost.
